BIG JETTY - 1/6 Scale Twin-Engine River Jet Boat - HPW40 Incl. - HAVE-IT-ALL
€79,95
Sale price
€79,95
Regular price
Direct Download after Your Purchase
Big Is Beautiful!
Our twin-engine river jet boat BIG JETTY in 1/6 scale was developed according to this motto.
The model is powered by two 40 mm HPW40 jet drives with an attached 2.2 kW brushless motor on 3-6S LiPos. You can also install your M-Jet 30 or M-Jet 35. There are separate hull print files for these pumps also as part of the files package.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, cabin, roof, railing and add-on parts.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, cabin, roof, railing and add-on parts.
BIG JETTY is one of the largest and most comprehensive RC boats for self-printing on the market.
The data package (STL, STEP, 3mf) consists of 253 different print parts, with a total of 670 components to be printed. The resulting level of detail sets new standards.

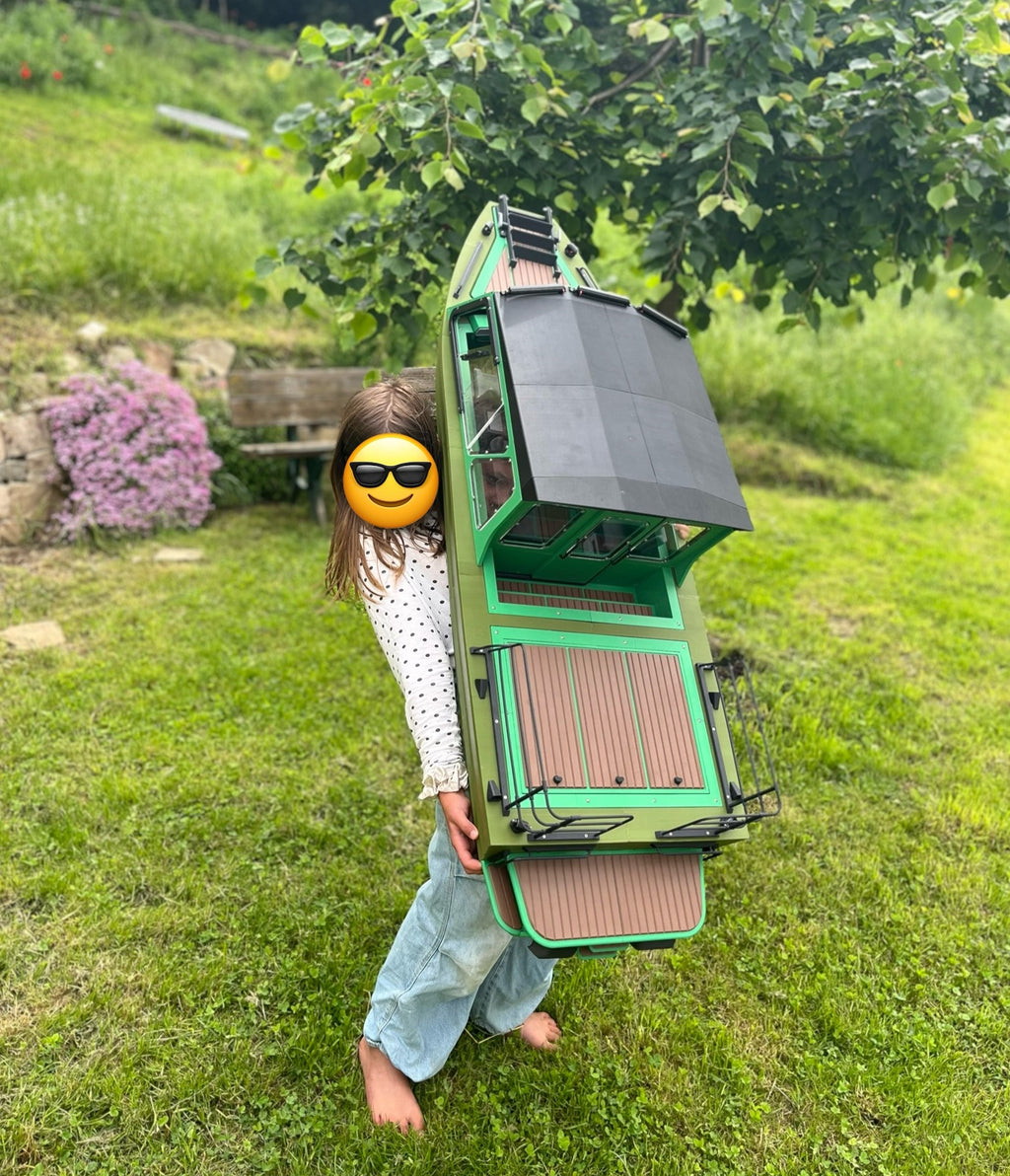

BIG JETTY impresses with its sheer size and high functionality (sliding windows, sliding door, folding deck, folding ladder, lighting, etc.).
It therefore places high demands on the builder both in terms of assembly and driving.
In addition to the print data (STL + 3mf), the data package contains detailed, illustrated assembly instructions (122 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).
All documents are listed here
The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.
All documents are listed here
The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.
For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with Polymaker PolyLite ASA and ABS.
There is a matching trailer for your Axial SCX6 here

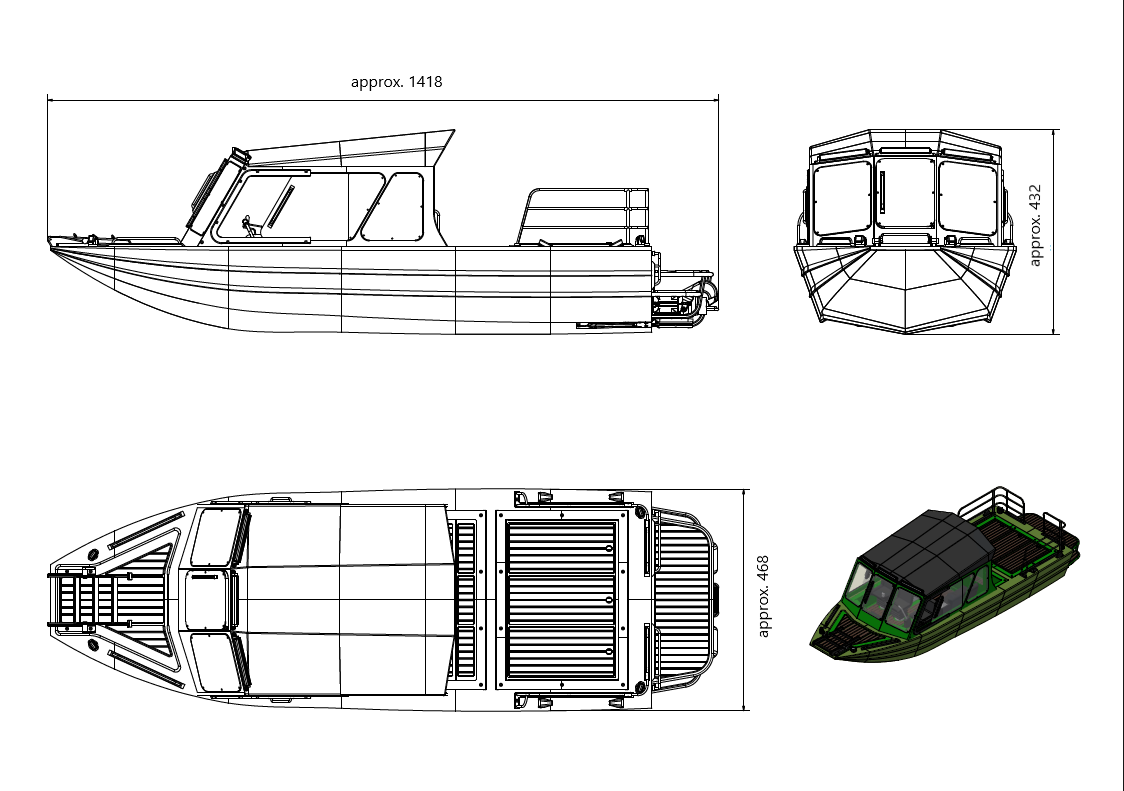

Technical data:
Length: 1418 mm
Width: 468 mm
Height: 432 mm
Weight (printed parts): approx. 10,000 g
Weight (complete): approx. 15,000 g
The model is aimed at experienced 3D printing users and model makers.
The following components are additionally required and are not part of the offer:
2x 4074 1400kV brushless motor
2x ESC 150A
4x 3-6s Lipo
various small parts
(all components listed in BoM)
If you want to build the boat with M-Jet Pump follow these links:
M-Jet 30 jet drive, you can get here
OR
M-Jet 35 jet drive, you can get here
M-Jet 35 jet drive, you can get here
NOTE: This offer includes only STL/Step/3mf files for self-3d-printing
Print bed dimensions: 250x250x250 mm (length x width x height)
For smaller installation spaces, the STL data must be cut independently or the arrangement in the printer must be changed (additional support may be necessary).
A 3mf slicer file is supplied for all components.
BambuLab A1/P1P/P1S/X1/H2D compatibility guaranteed!
