DEFENDER 22 - 1/6 Scale - Twin Outboard Boat - HAVE-IT-ALL

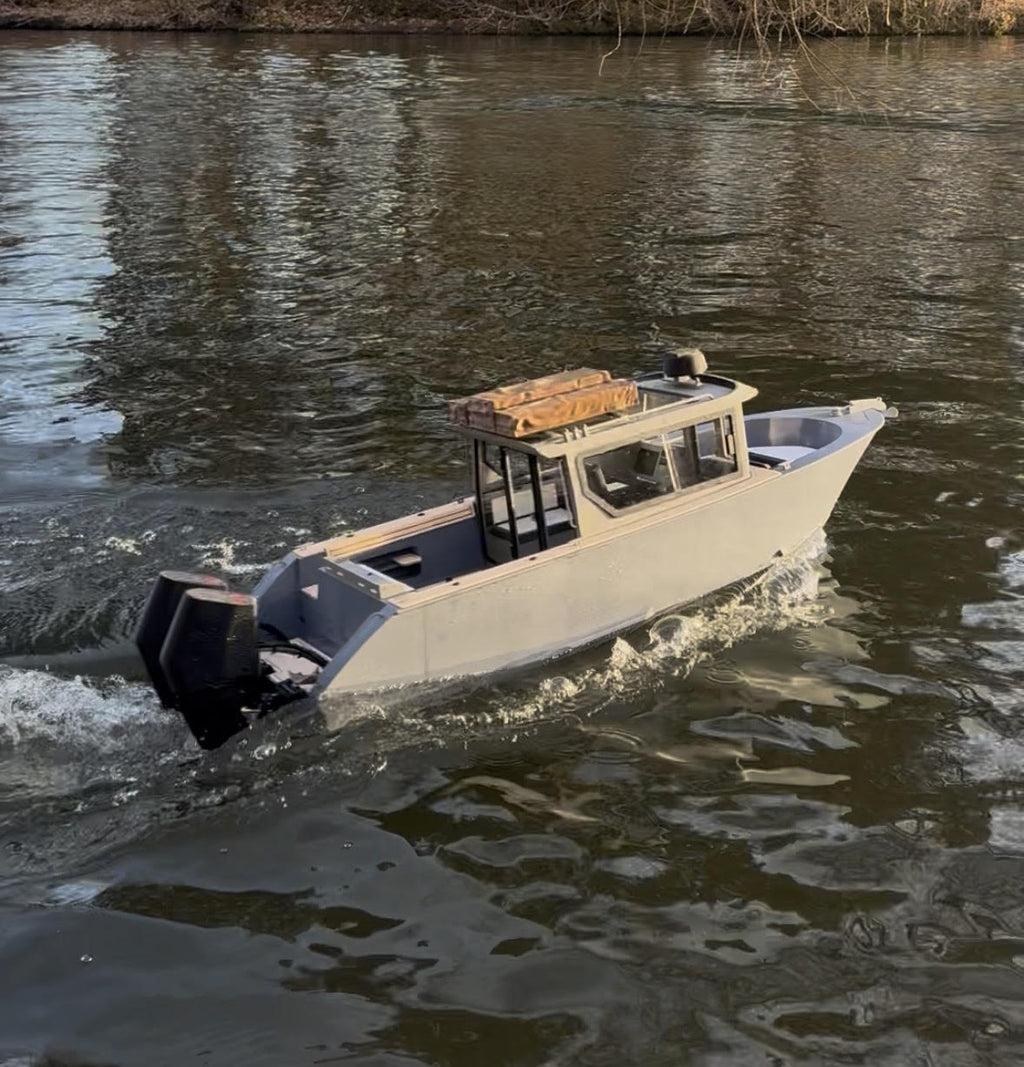

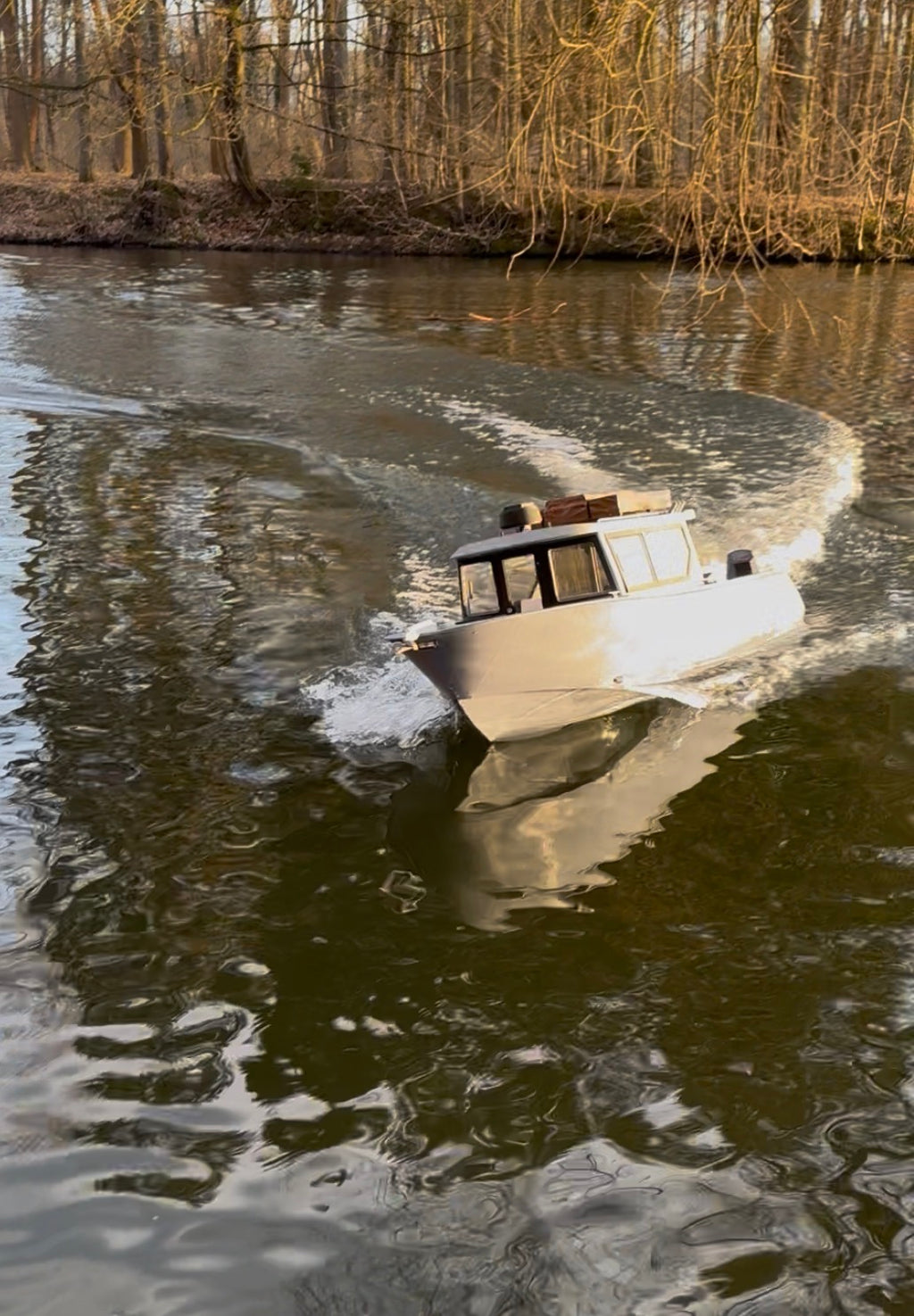

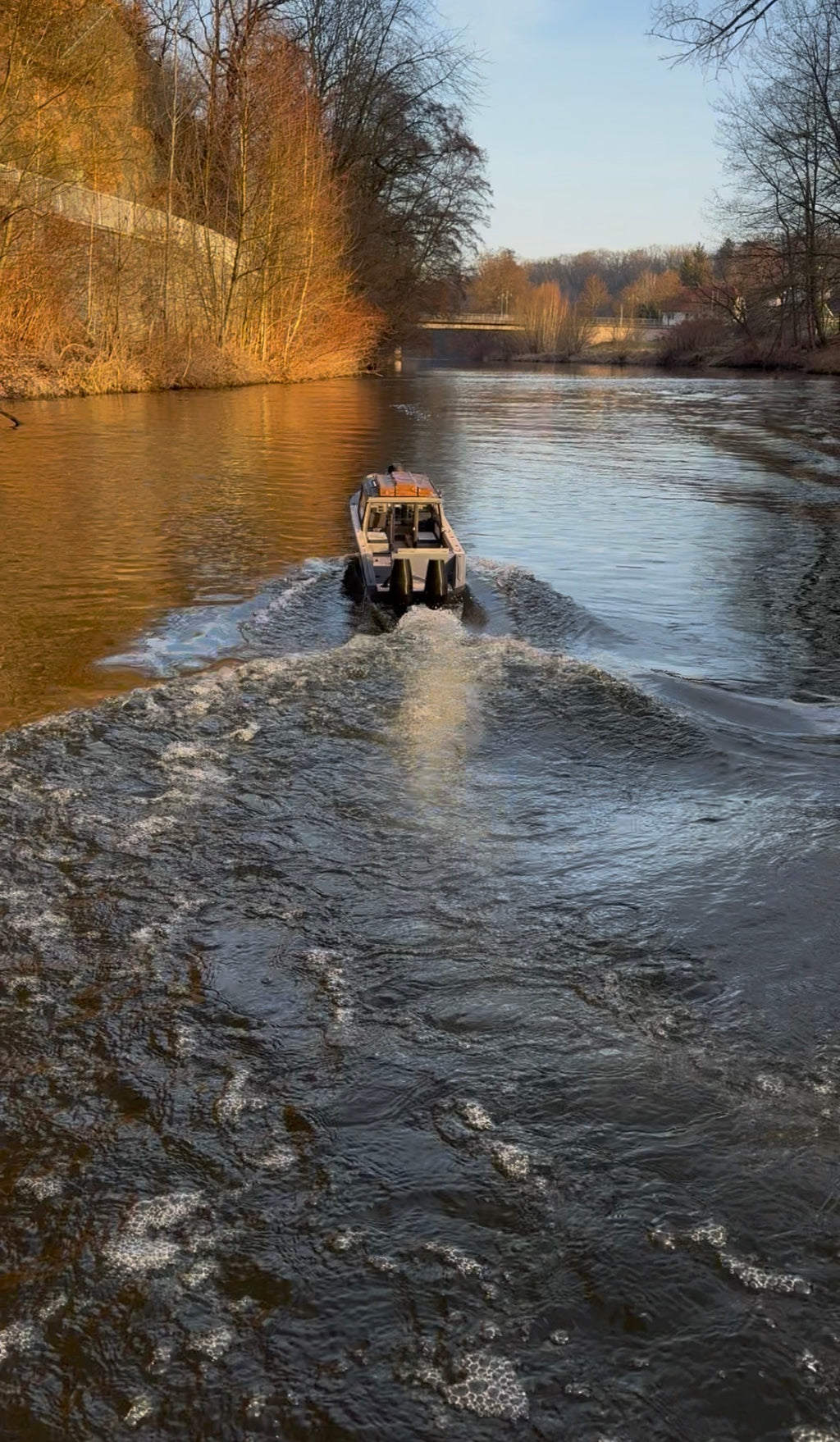

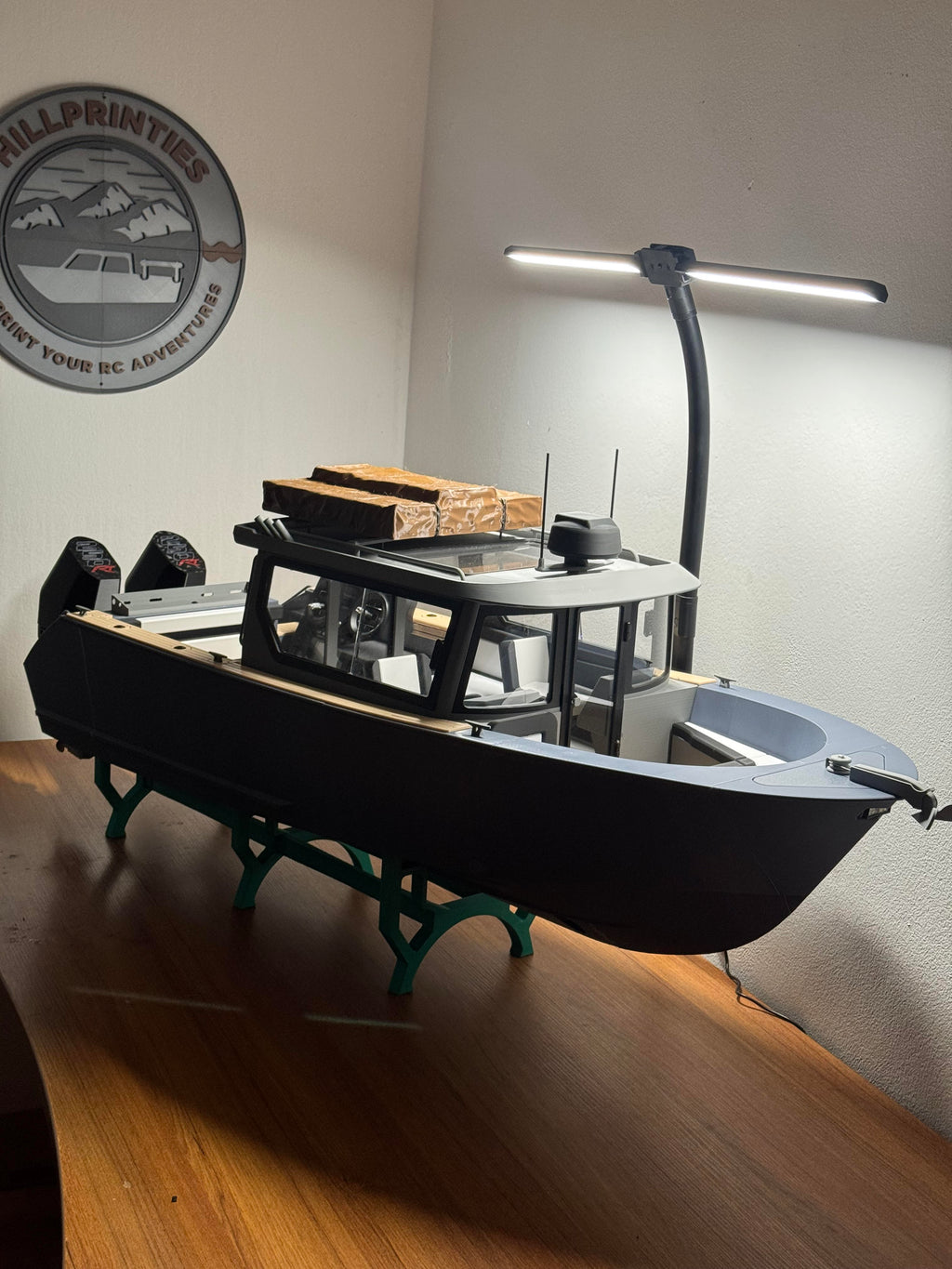

Here is our 1/6 Scale DEFENDER 22 (JasperMarine inspired) !

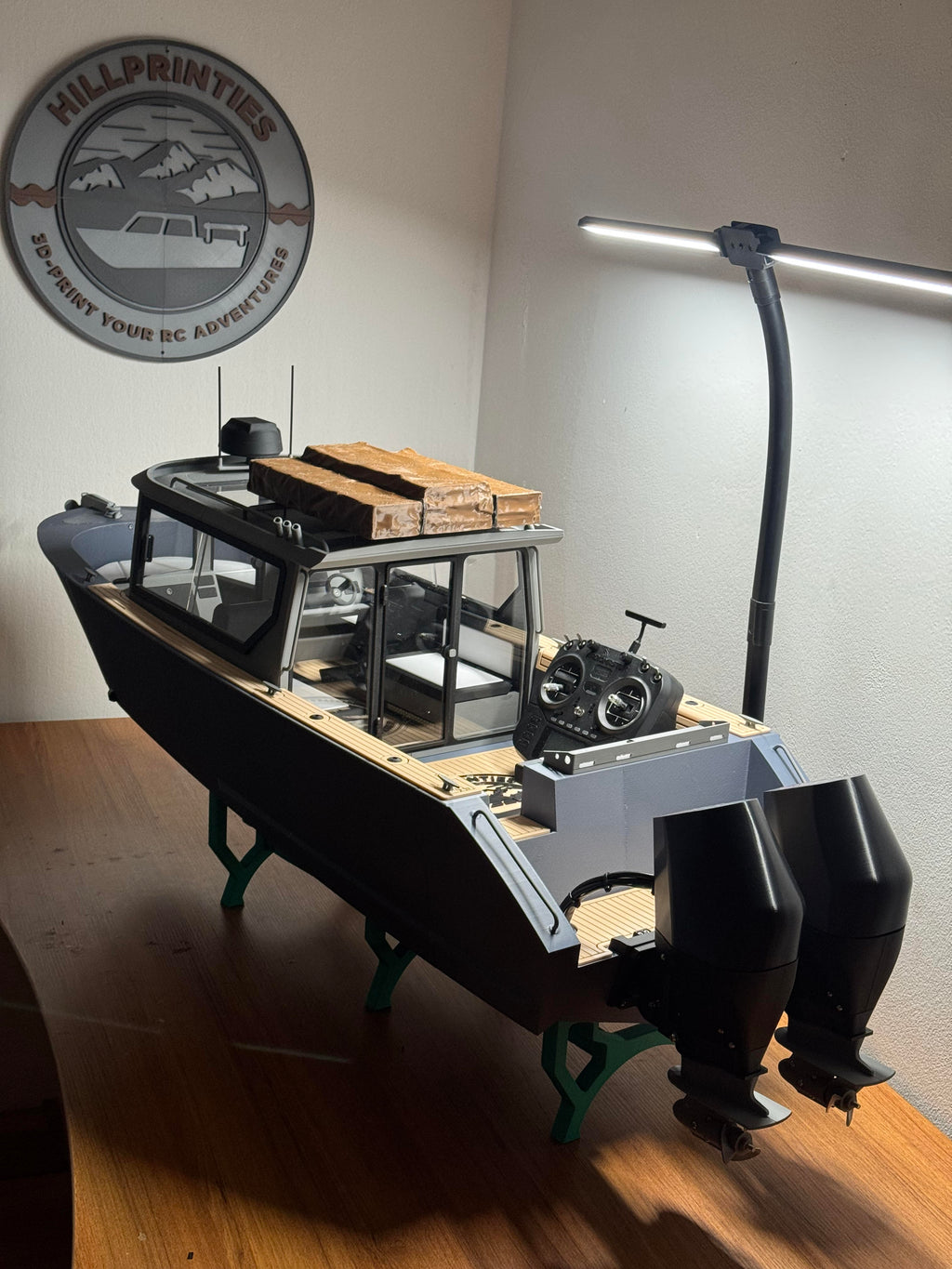

The model is powered by 2 of our own 3D-printed Outboards with an attached 2.2 kW brushless motor on 3-4S LiPos (6S to your own responsibility).

The print data includes all the necessary data for printing the hull, cabin, lids, front seatgroup and all the many accesories.
In this set the Outboard IS also included.

DEFENDER 22 is our second outboard boat and continous our series of outboard boats.

The DEFENDER 22 is is characterized by its high functionality which is outstanding for 3d printable RC boats.
These are the unique features:

Bow Thruster
Working Anchor
LED Front Light
LED Cabin Lights
Slidable Windows
Fully functional Front and Rear Doors

Quick Release Lid

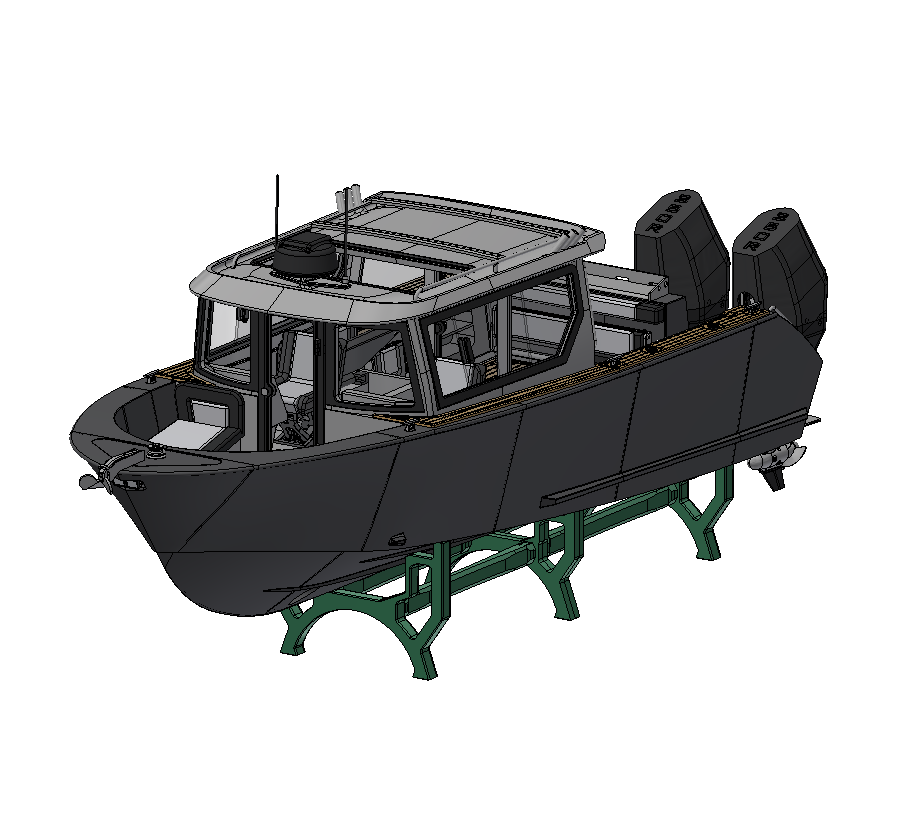

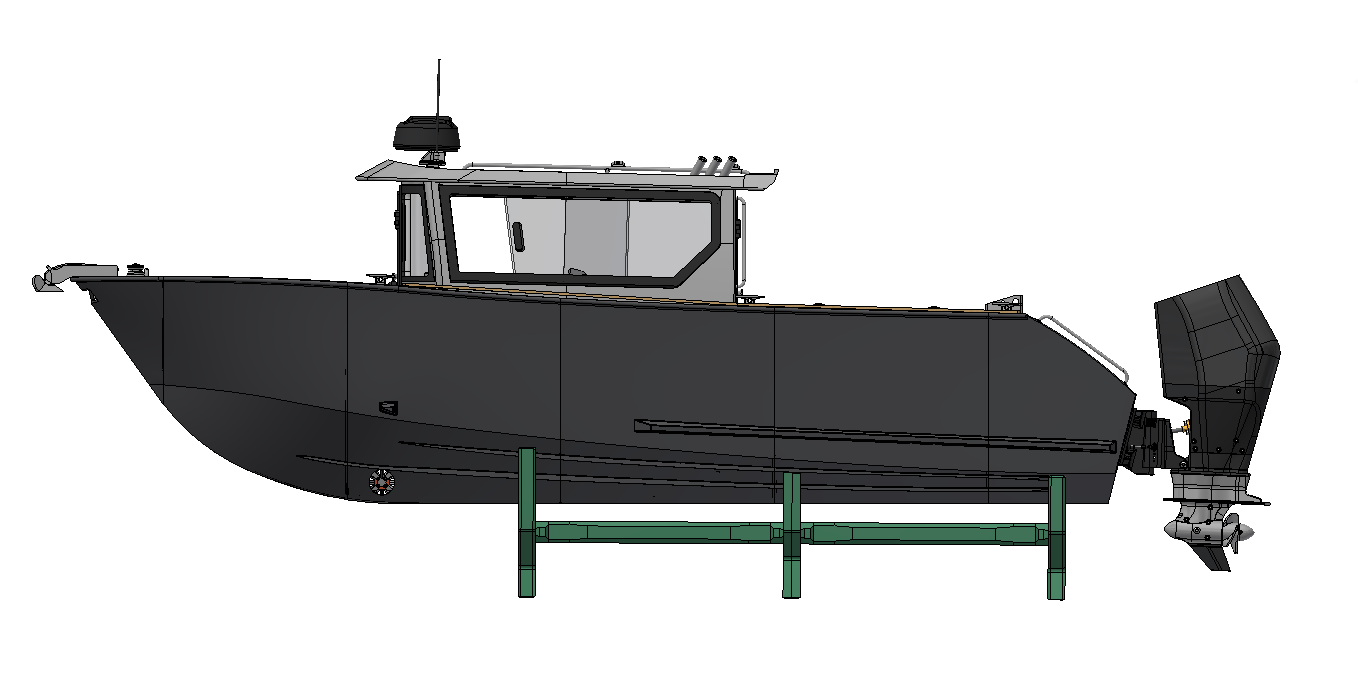

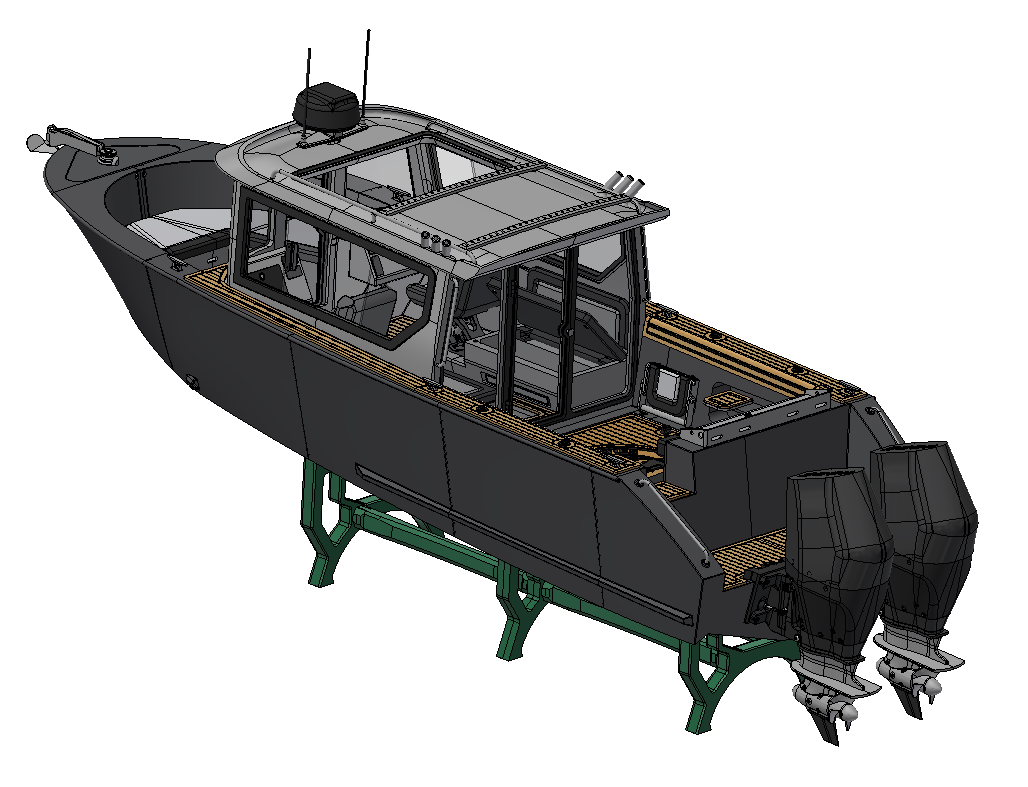

The data package (STL, STEP, 3mf) consists of more than 265 different print parts, with a total of over 750 components to be printed. The resulting level of detail is outstanding and unique for 3d printable RC boats.

It therefore places high demands on the builder both in terms of assembly and driving.

In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (83 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA+, PETG or ABS/ASA. The double-walled hull gives the boat great stability.

As this is our most complexe Hull ever made it is highly recommended to print it in PLA+. That will lead to a much smoother assembly because warping won't be an issue. For me eSUN PLA+ worked exceptionally well for that boat.

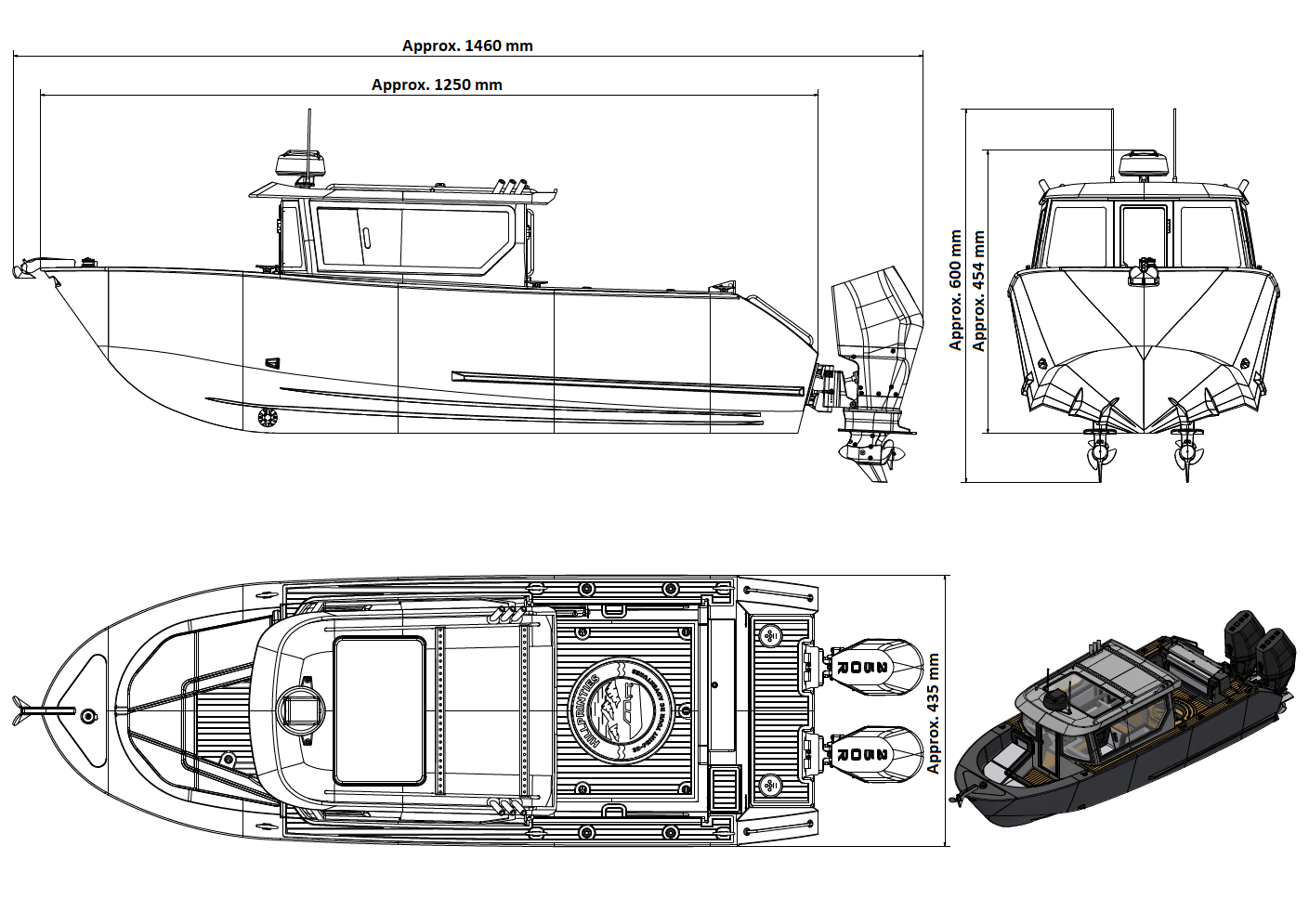

Technical data:

Overall Length: 1460 mm

Length: 1250 mm

Width: 435 mm

Overall Height: 600 mm

Height: 454 mm

Weight (printed parts): approx. 12.000 g
-> Hull: approx. 7.000 g
-> Cabin: approx. 2.700 g
-> Planking: approx. 800 g

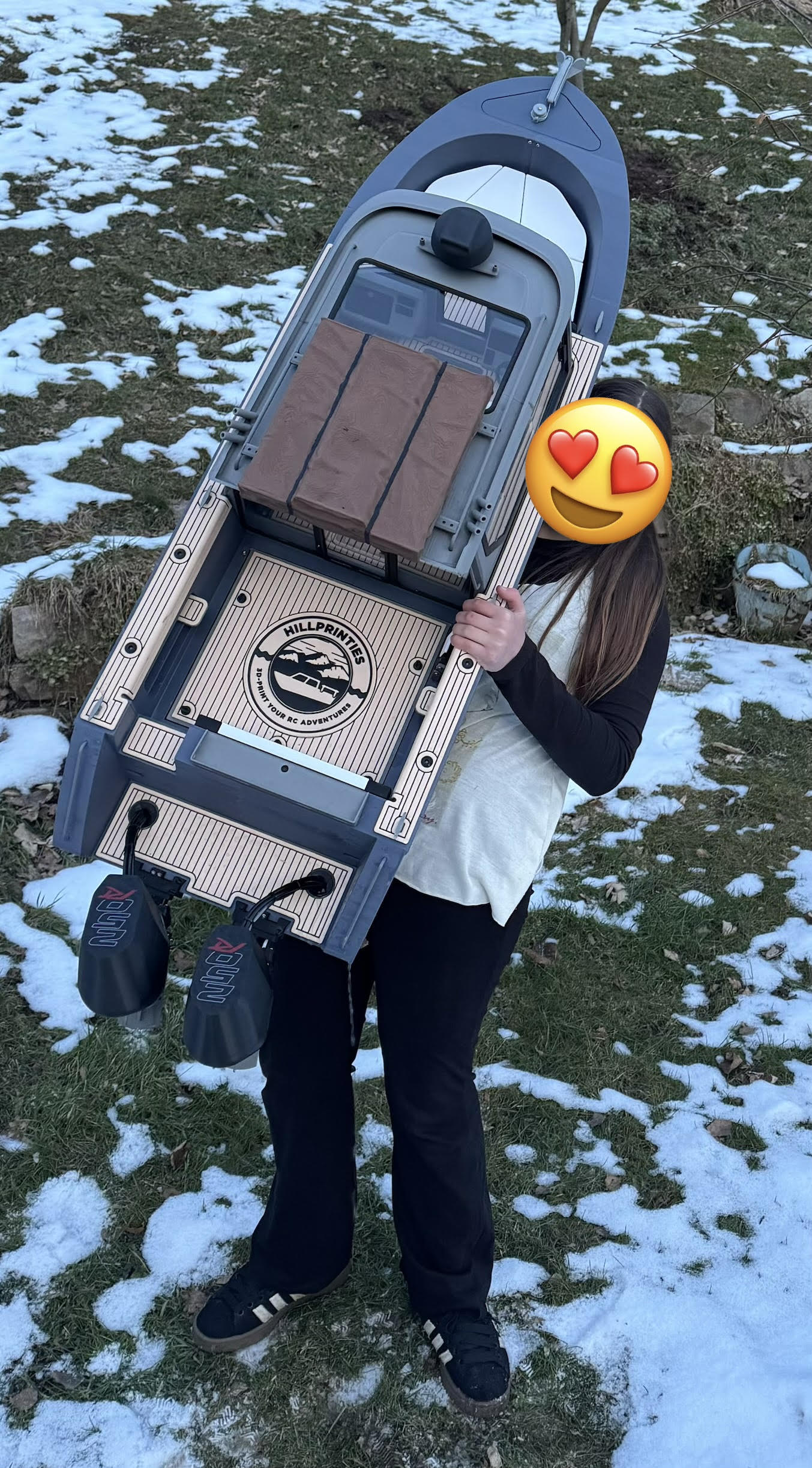

Weight (complete): approx. 15.000 g

The model is aimed at experienced 3D printing users and model makers!!!

The following components are additionally required and are not part of the offer:

2x 4074 1400kV brushless motor (for the outboard)

2x ESC 160A+ (for the outboard)

2x 3-4s LiPo 9500 mAH (6s to your own responsibility)

2x 25kg waterproof standard servo

3x servo winch (for the outboard and anchor)

2x water pump (for the outboard)

1x 1306 3000kV brushless motor (for the bow thruster)

1x 16A ESC (for the bow thruster)

1 x 3S 1300mAH LiPo (for the bow thruster)

Remote control and receiver

various small parts

(all components listed in BoM)
