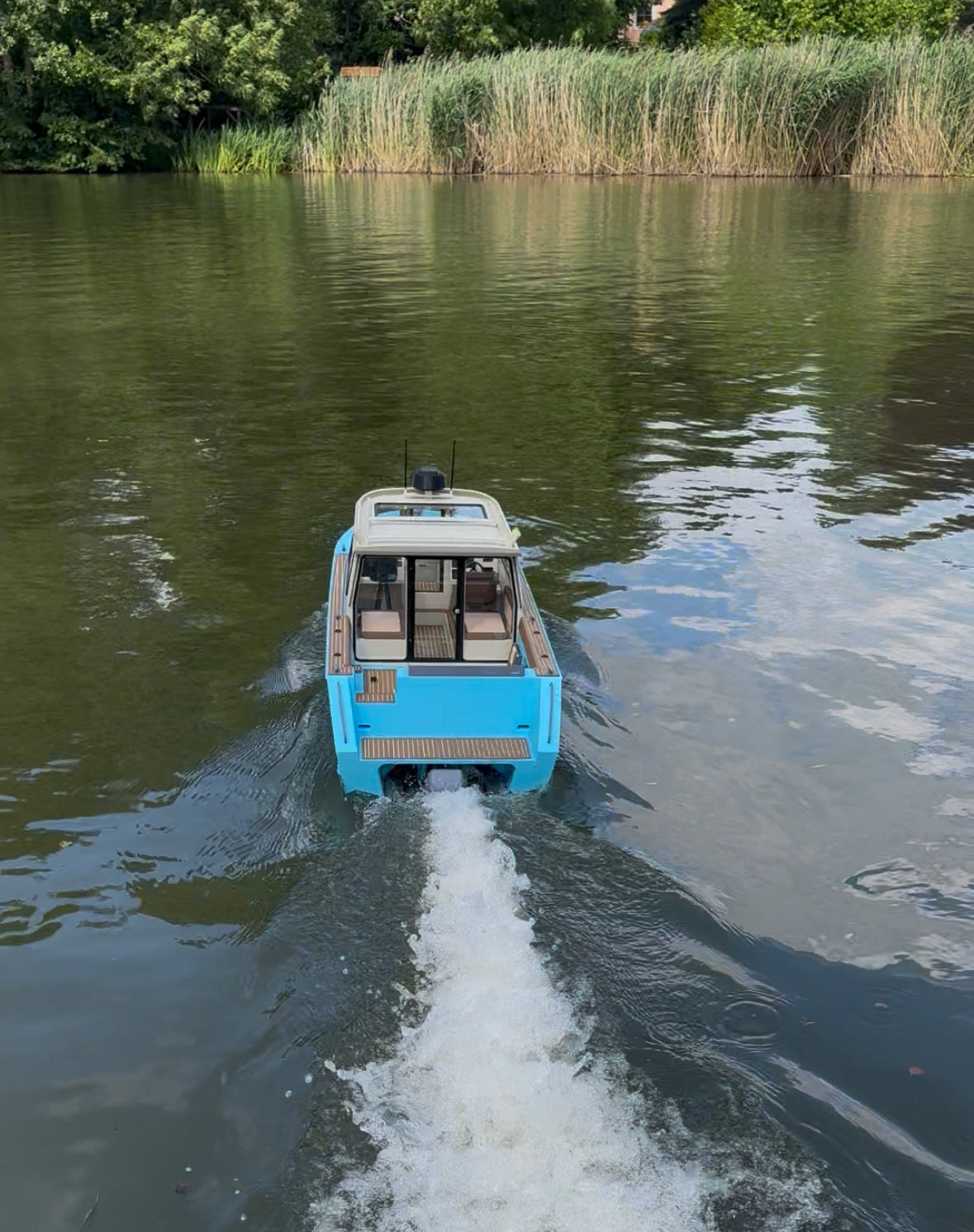

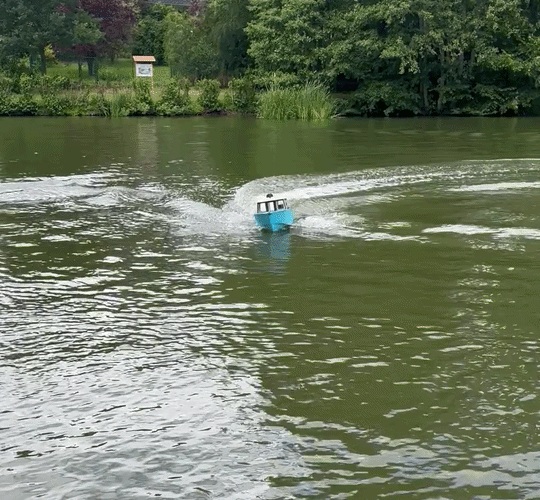

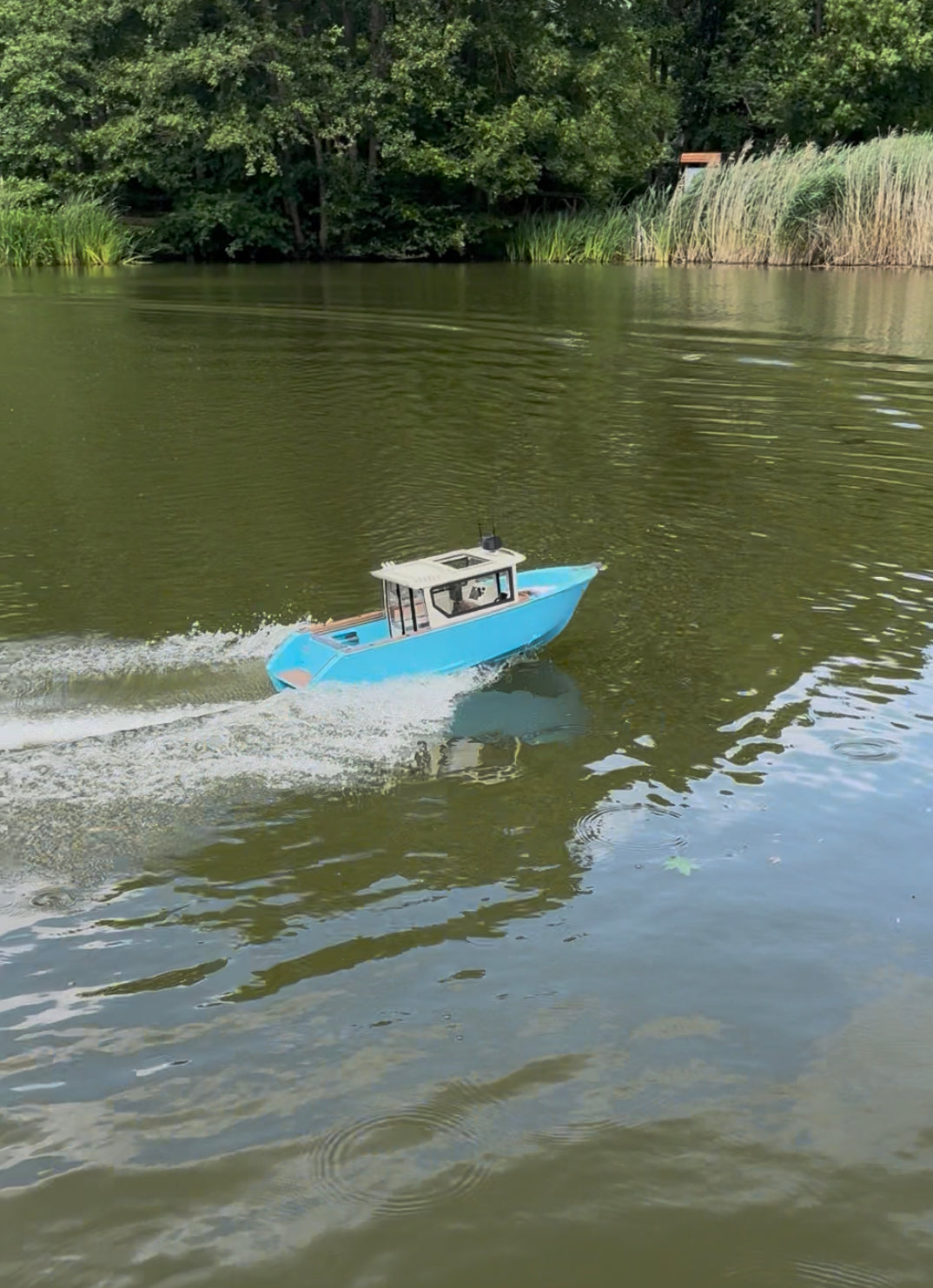

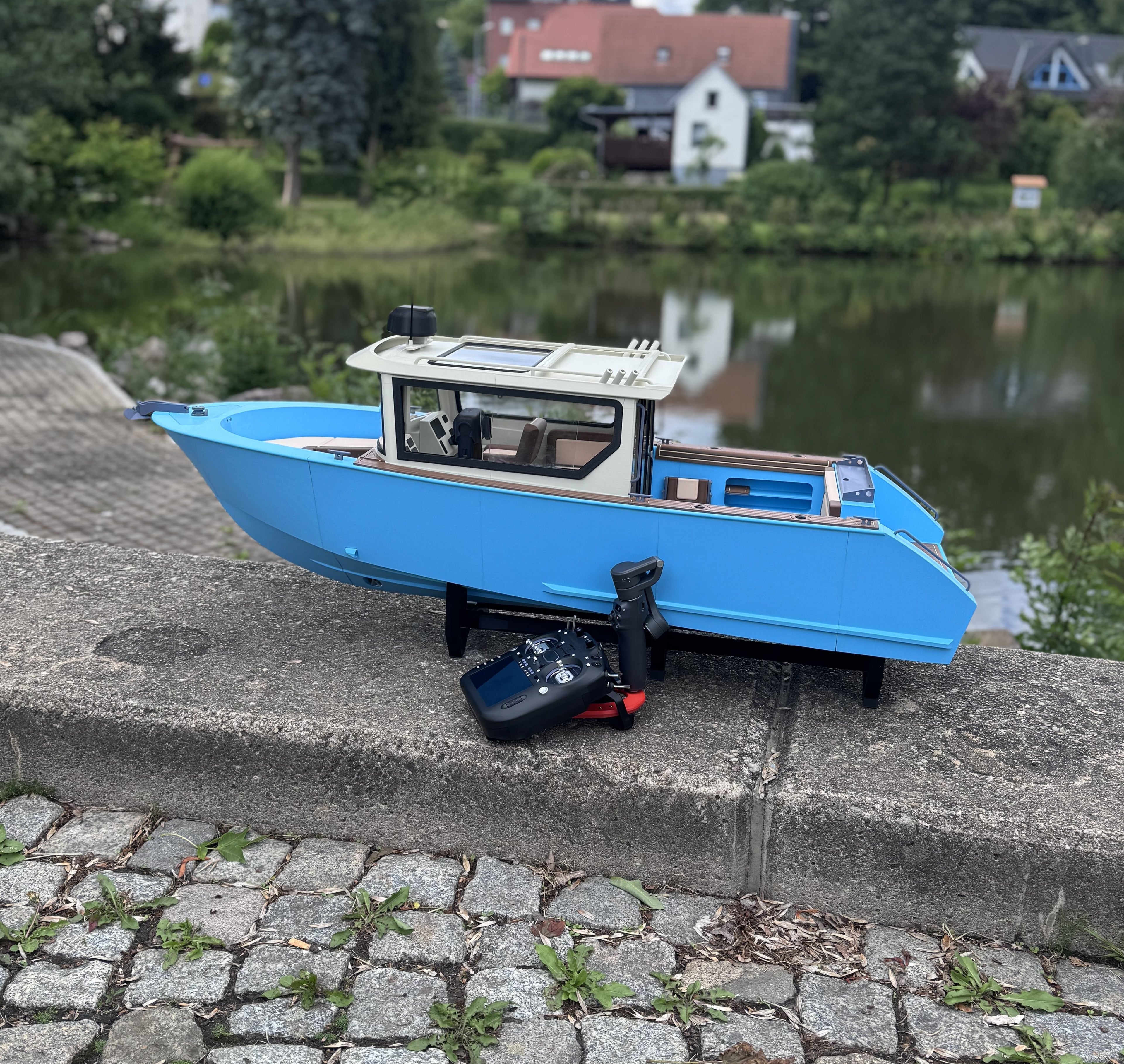

DEFJet 22 - 1/6 Scale - Jet Boat - W/O Jet Pump

Here is our 1/6 Scale DEFJet 22 (The Jet Pump driven sibling of our JasperMarine inspired DEFENDER 22 Outboard boat) !

The model is powered by our famous 40 mm HPW40 jet drive with an attached 2.2 kW brushless motor on 6S LiPos.
You can also install your M-Jet 30 or M-Jet 35 (need to be purchased separately, links below). There are separate hull print files for these pumps also as part of the files package.

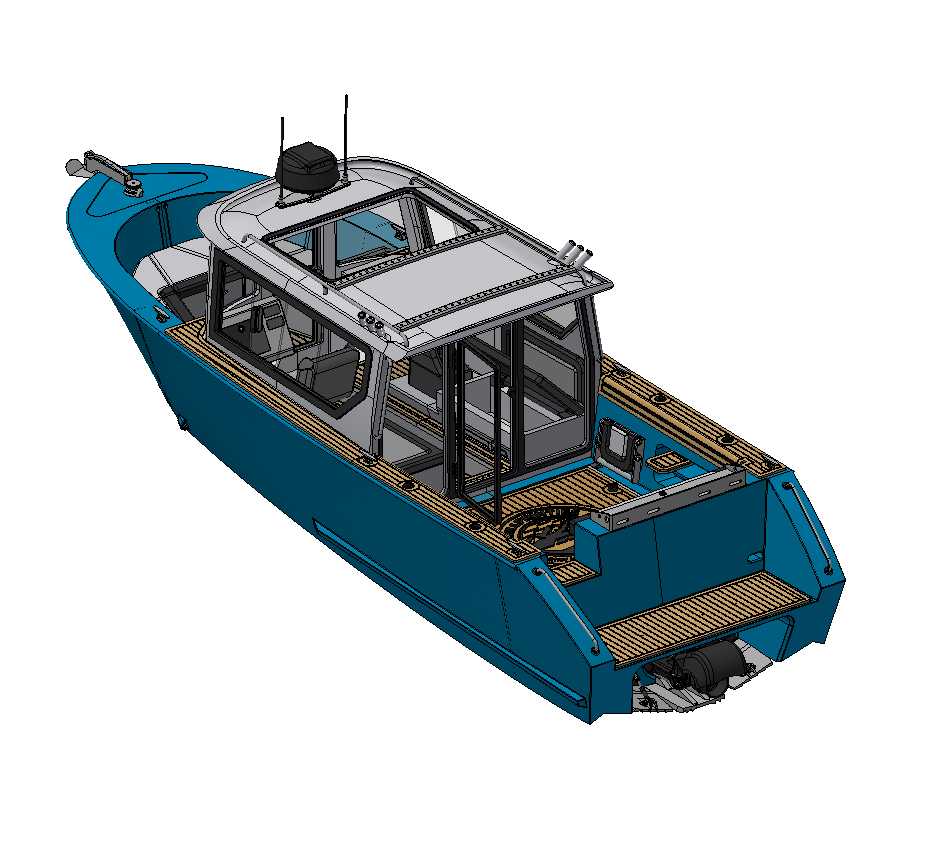

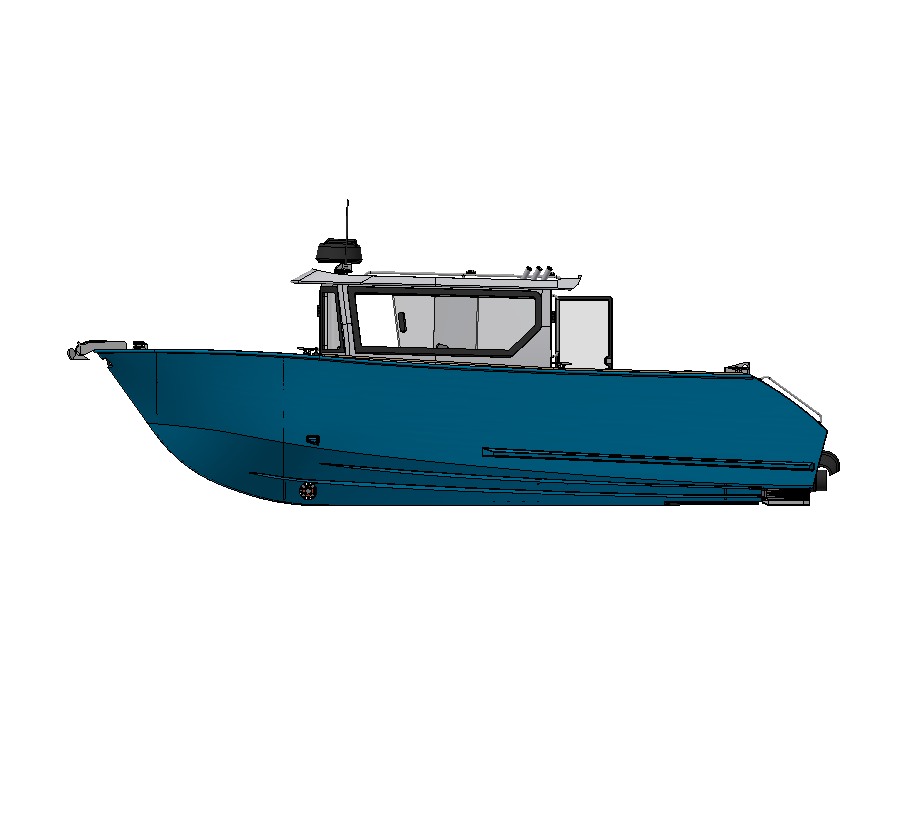

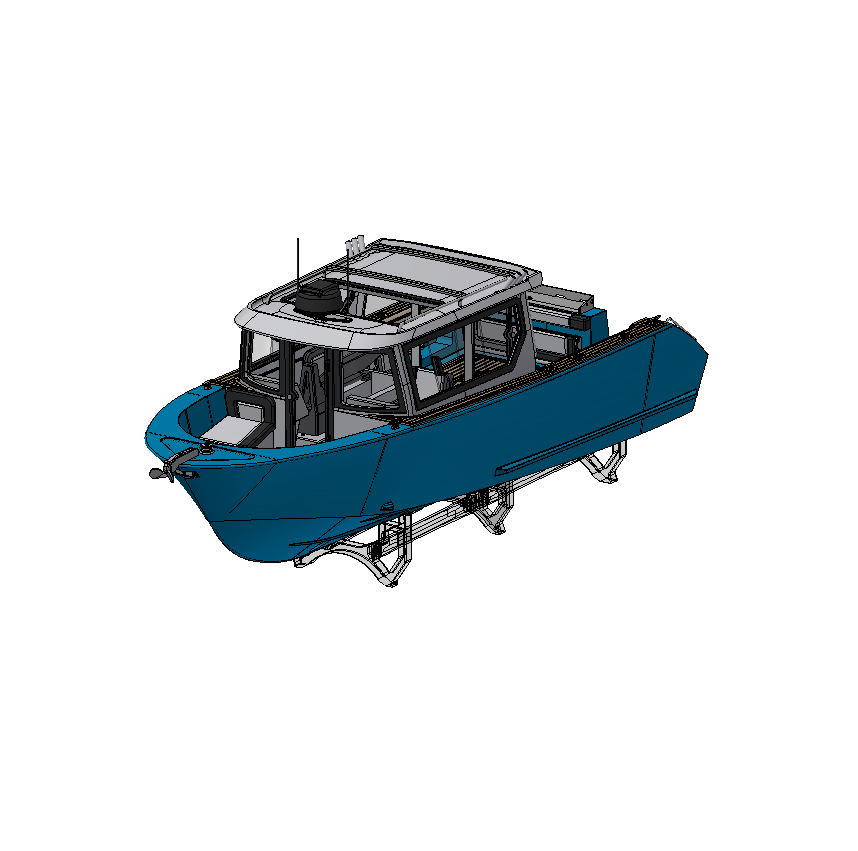

The print data includes all the necessary data for printing the hull, cabin, lids, front seatgroup and all the many accesories.

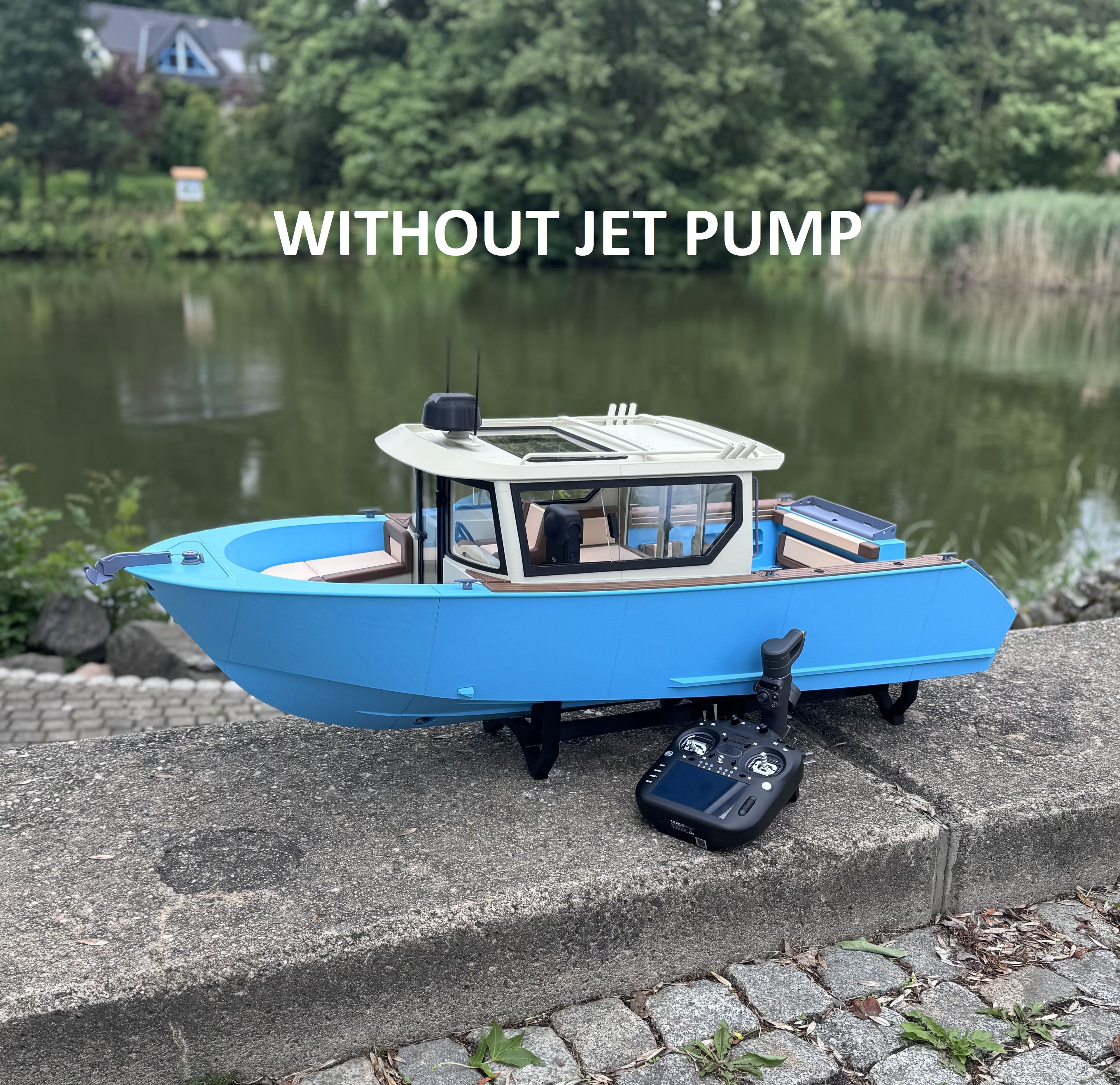

In this set the HPW40 Jet Pump is also NOT included. Also the M-Jet pump need to be purchased separately!

DEFJet 22 is another water jet pump driven boat and continous our series of outstanding jet boats.

The DEFJet 22 is characterized by its high functionality which is outstanding for 3d printable RC boats.
These are the unique features:

Bow Thruster
Working Anchor
LED Front Light
LED Cabin Lights
Slidable Windows
Fully functional Front and Rear Doors

Quick Release Lid

The data package (STL, STEP, 3mf) consists of more than 265 different print parts, with a total of over 750 components to be printed. The resulting level of detail is outstanding and unique for 3d printable RC boats.

It therefore places high demands on the builder both in terms of assembly and driving.

In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (85 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA+, PETG or ABS/ASA. The double-walled hull gives the boat great stability.

As this is our most complexe Hull ever made it is highly recommended to print it in PLA+. That will lead to a much smoother assembly because warping won't be an issue. For me eSUN PLA+ worked exceptionally well for that boat.

There is a matching trailer for your Axial SCX6 here

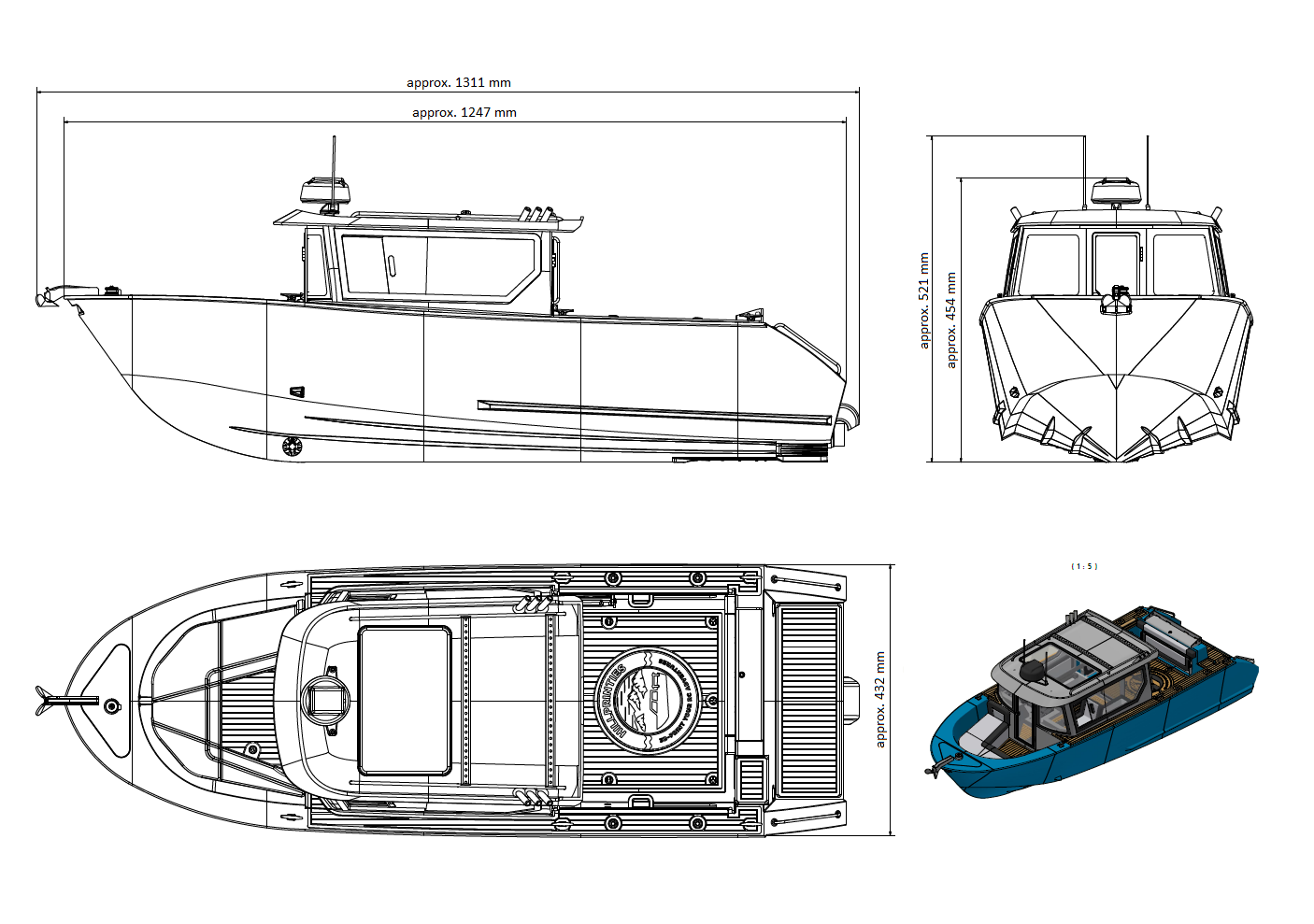

Technical data:

Overall Length: 1311 mm

Length: 1250 mm

Width: 432 mm

Overall Height: 521 mm

Height: 454 mm

Weight (printed parts): approx. 12.000 g
-> Hull: approx. 7.000 g
-> Cabin: approx. 2.700 g
-> Planking: approx. 800 g

Weight (complete): approx. 15.000 g

The model is aimed at experienced 3D printing users and model makers!!!

The following components are additionally required and are not part of the offer:

1x 4074 1400kV brushless motor (for the jet pump)

1x ESC 200A+ (for the jet pump)

2x 6S LiPo 10000 mAH

2x 25kg waterproof standard servo

1x servo winch (anchor)

1x water pump (for the bilge pump)

1x 1306 3000kV brushless motor (for the bow thruster)

1x 16A ESC (for the bow thruster)

1 x 3S 1500mAH LiPo (for the bow thruster)

Remote control and receiver

various small parts

(all components listed in BoM)

If you want to build the boat with an M-Jet Pump follow these links:
