HP18 - 1/18 Scale - Unlimited Hydroplane
€17,50
Sale price
€17,50
Regular price
Skip to product information
Direct Download after Your Purchase

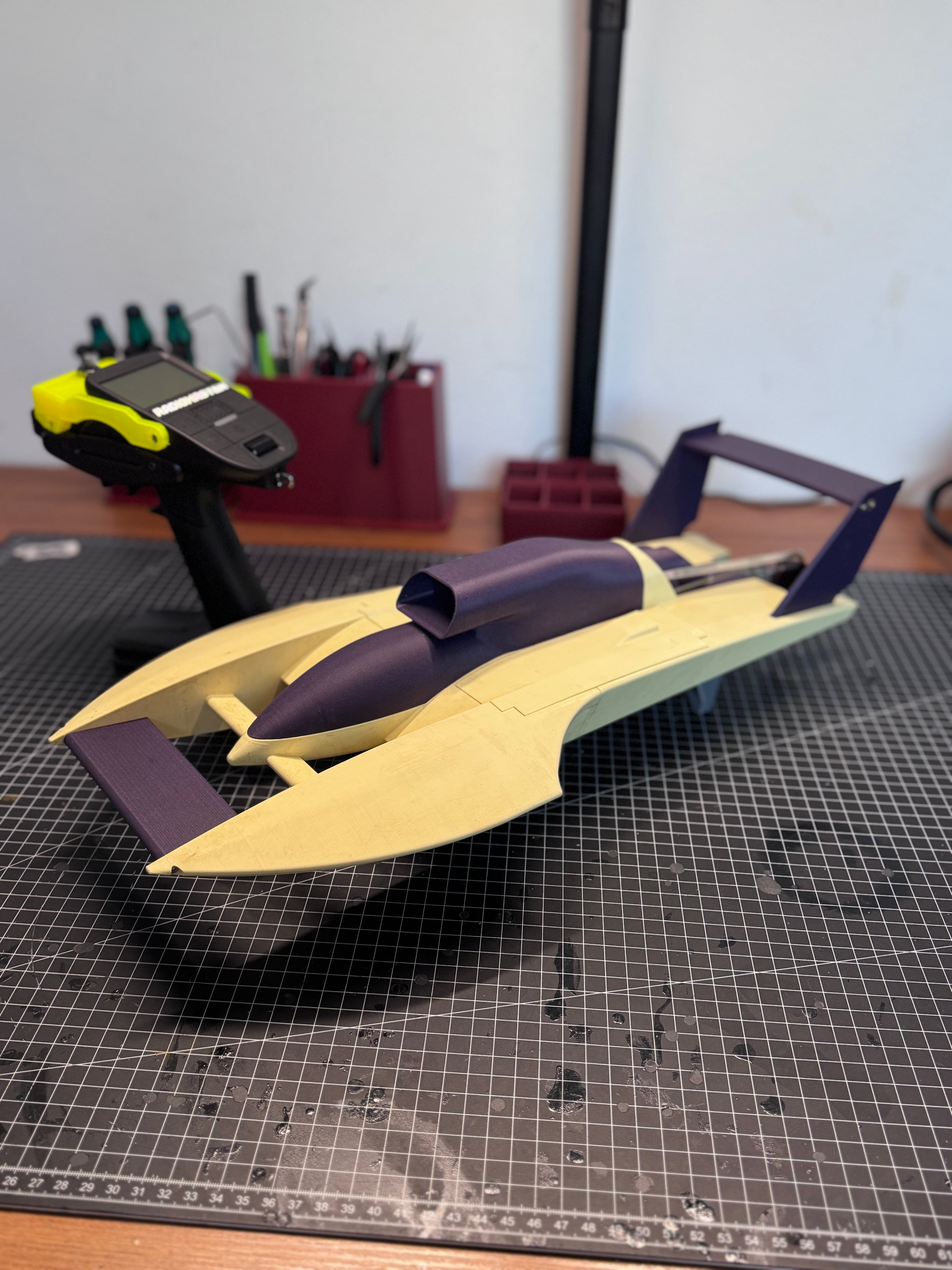

The HP18 is a 1/18 Scale Unlimited Hydroplane ment to be a very simple and effortable set, quick in printing as well as assembling and very fast for its small size.

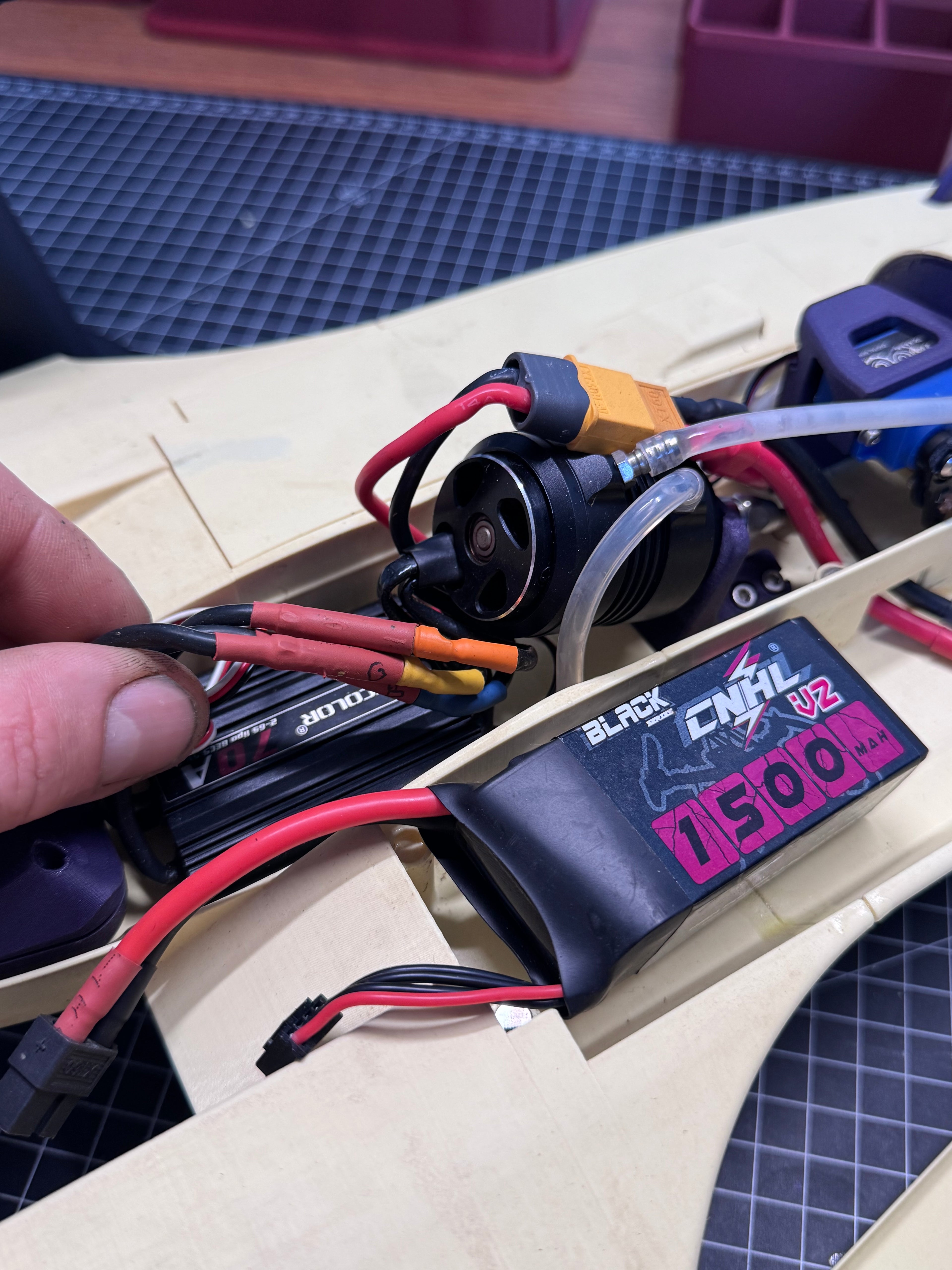

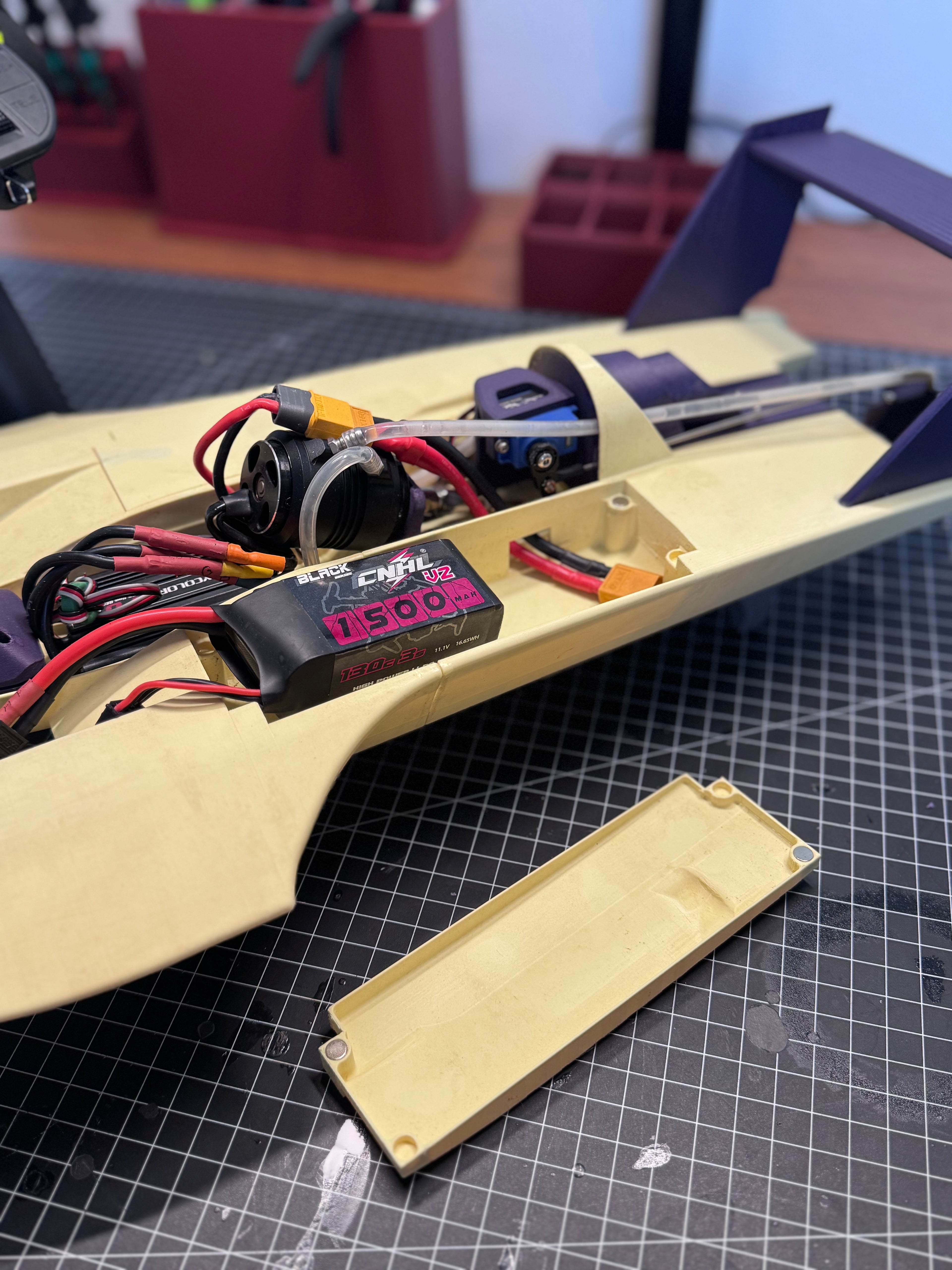

It is powered by a 2948 3450kV motor on 2-3S lipos. The drive train is designed for 3,18 mm flex shaft.

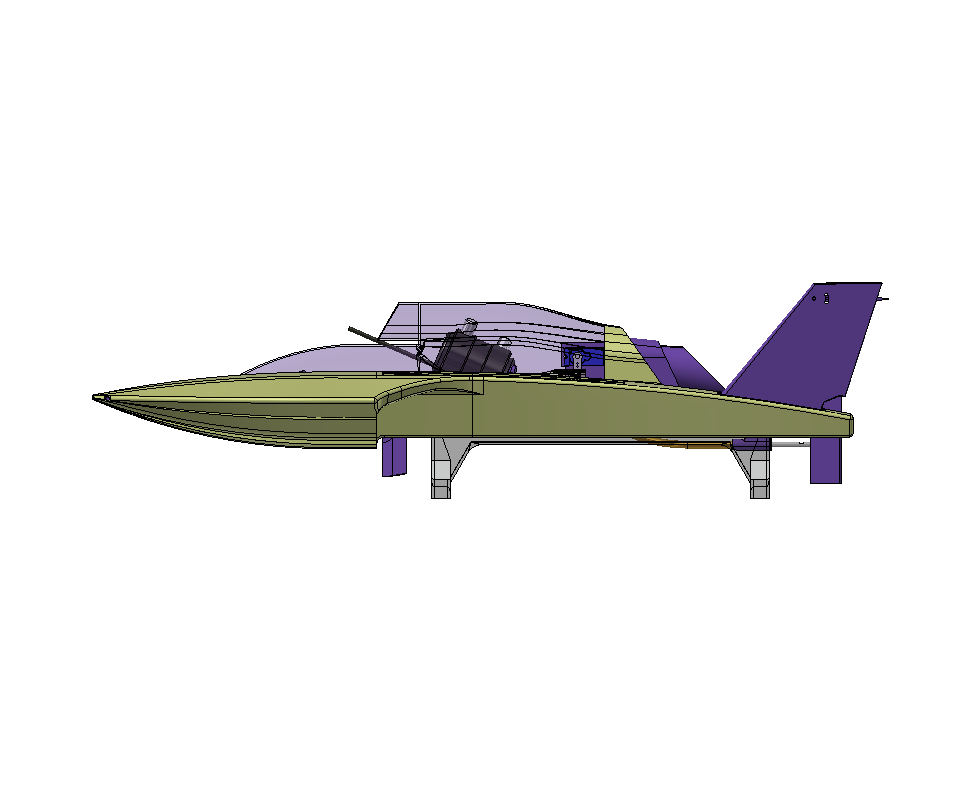

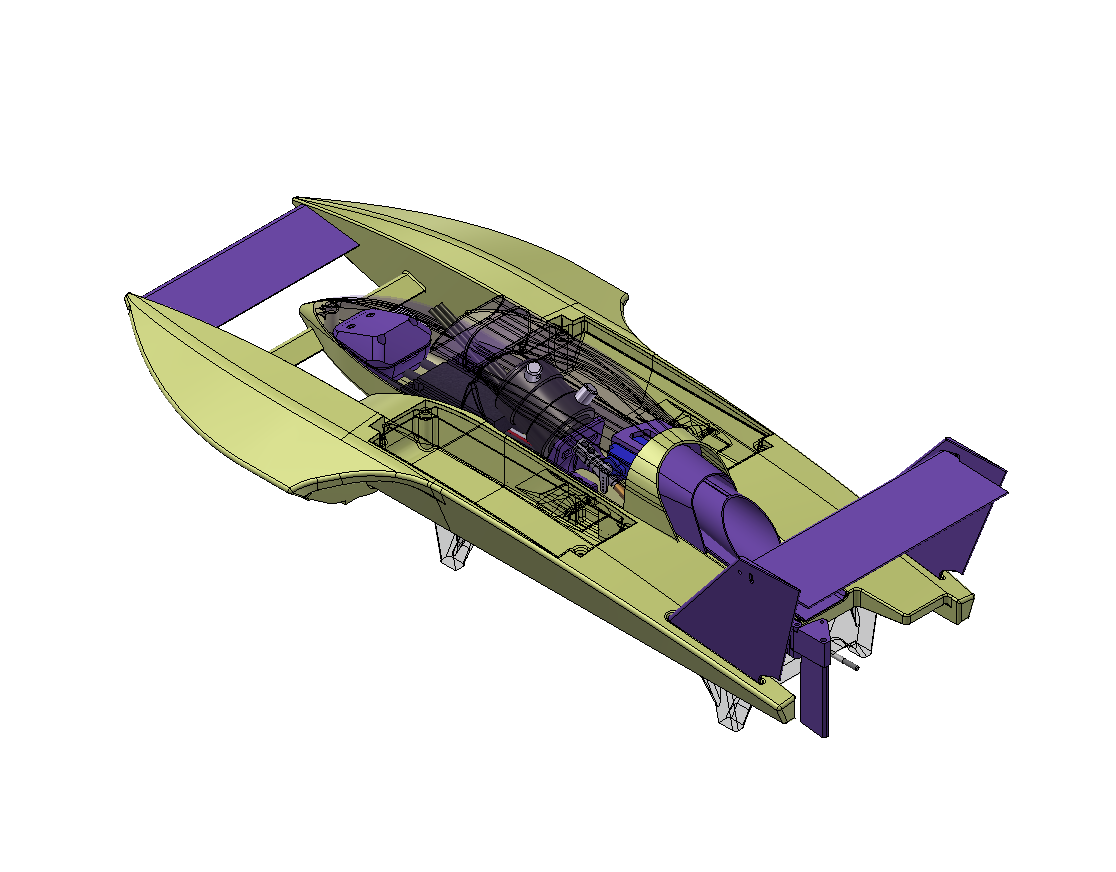

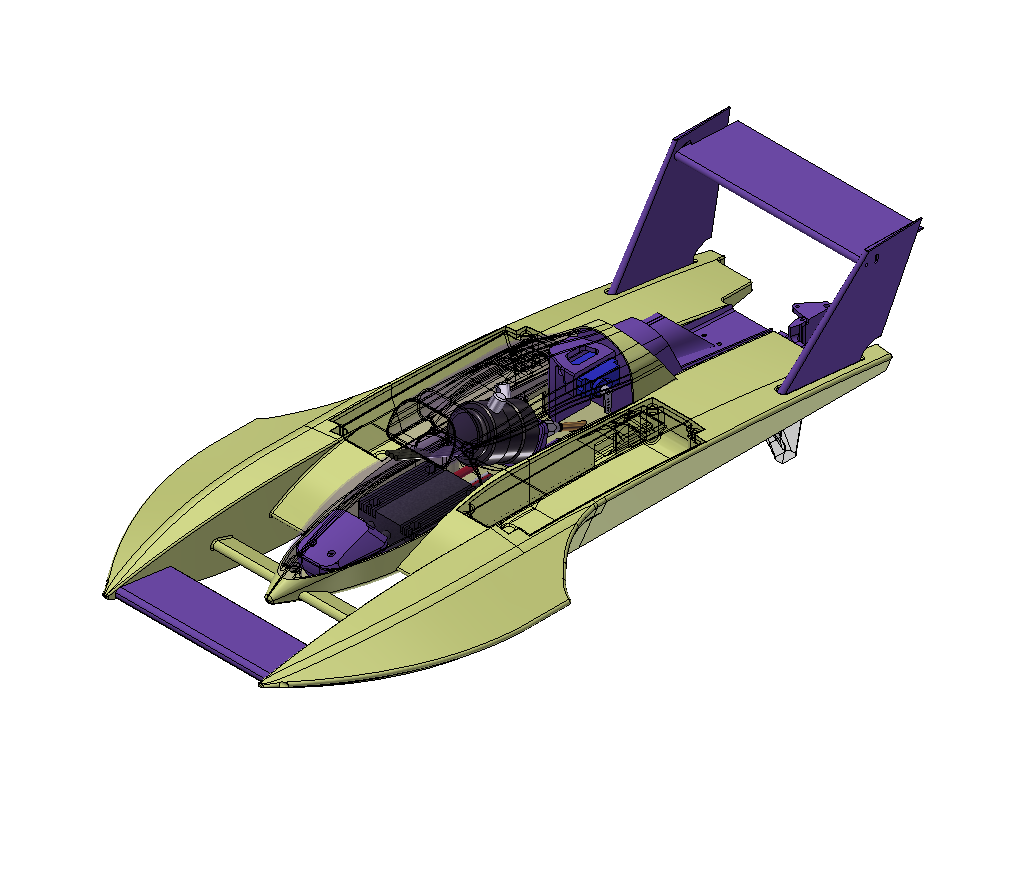

All parts including hull, canopy, wings, turnfin, strut and rudder are 3d print files. The hull comes with all necessary holes to mount all the parts.
NOTE! All hull parts are also included WITHOUT holes to let you build your boat with metal rudder, strut etc.
The data package (STL, STEP, 3mf) consists of 30 different print parts.
In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (18 pages) as well as illustrated printing instructions (16 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).
All documents are listed here

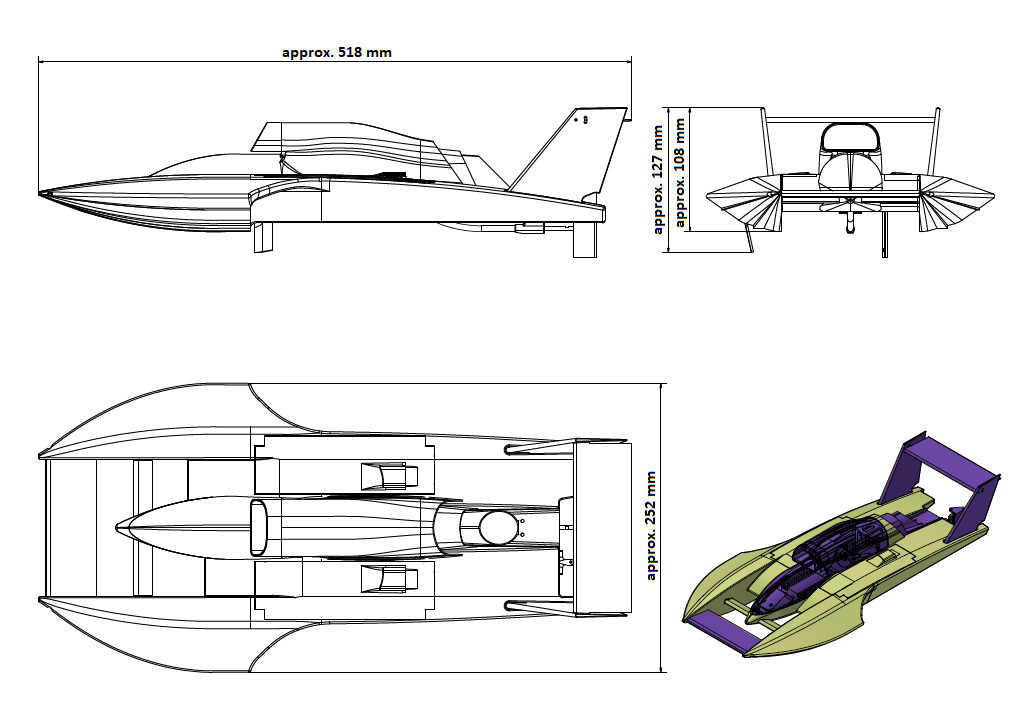

Technical data:
Overall Length: 518 mm
Length: 495 mm
Length: 495 mm
Width: 252 mm
Overall Height: 126 mm
Overall Height: 126 mm
Height: 108 mm
Weight (printed parts): approx. 433 g
-> Yellow Color parts: approx. 313 g
-> Purple Color parts: approx. 120 g
Weight (complete): approx. 1000-1200 g
-> Yellow Color parts: approx. 313 g
-> Purple Color parts: approx. 120 g
Weight (complete): approx. 1000-1200 g
The model is aimed at experienced 3D printing users and model makers!!!
The following components are additionally required and are not part of the offer:

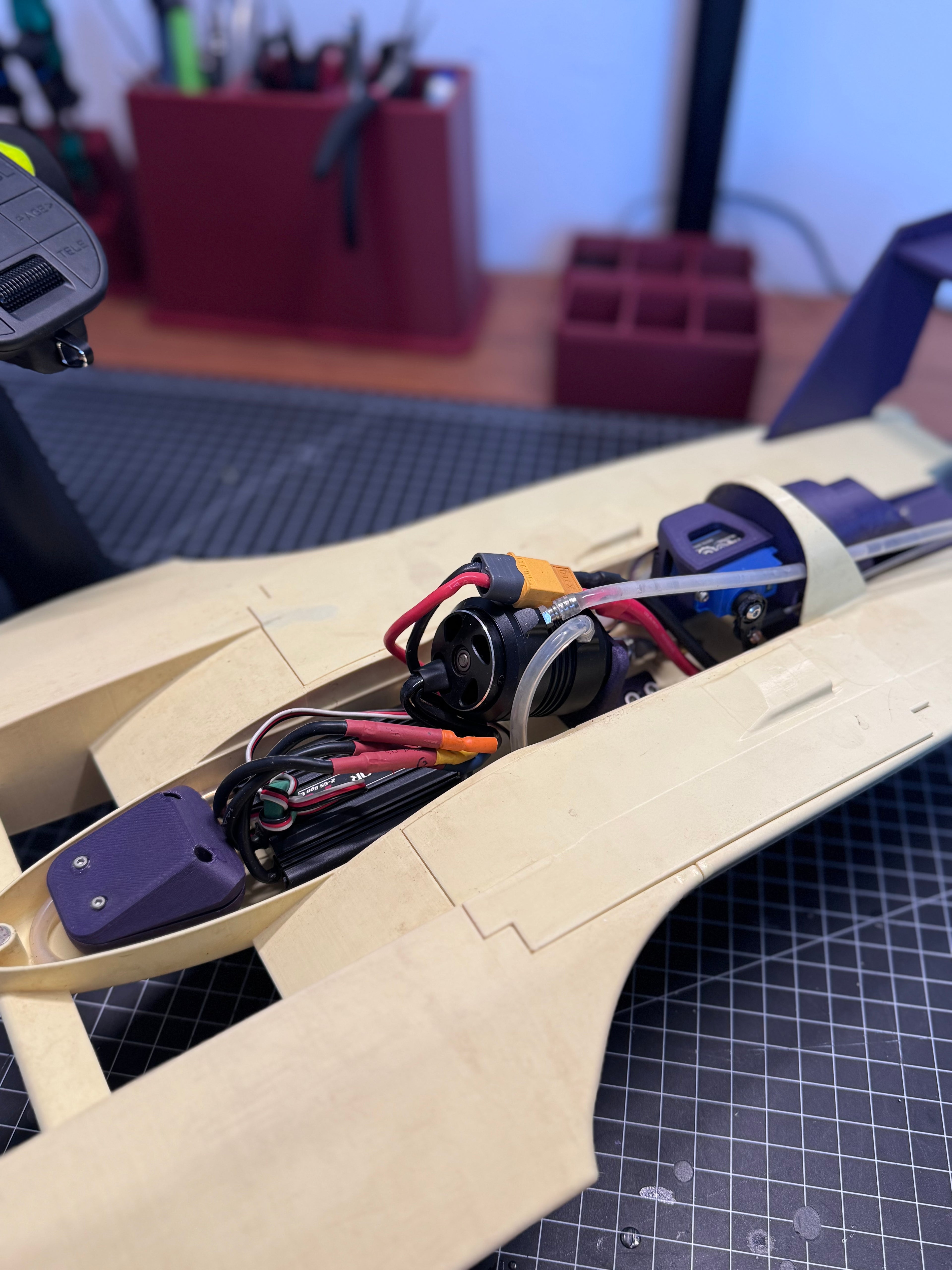

1x 2948 3450kV brushless motor
1x FlyColor ESC 70A

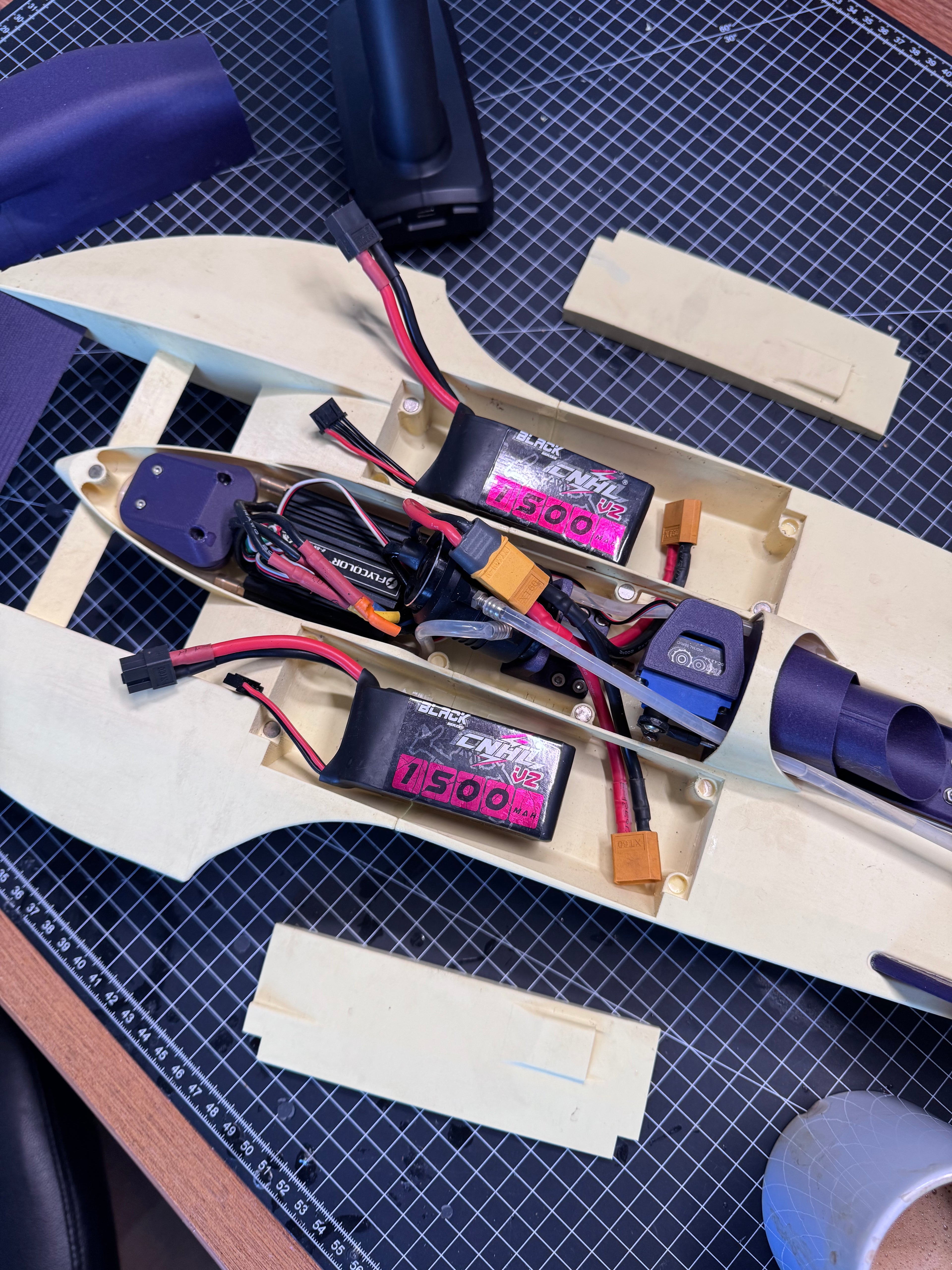

2x 3S LiPo 1500 mAH (dimensions LxWxH 78x39x28 mm, approx. 125 g)

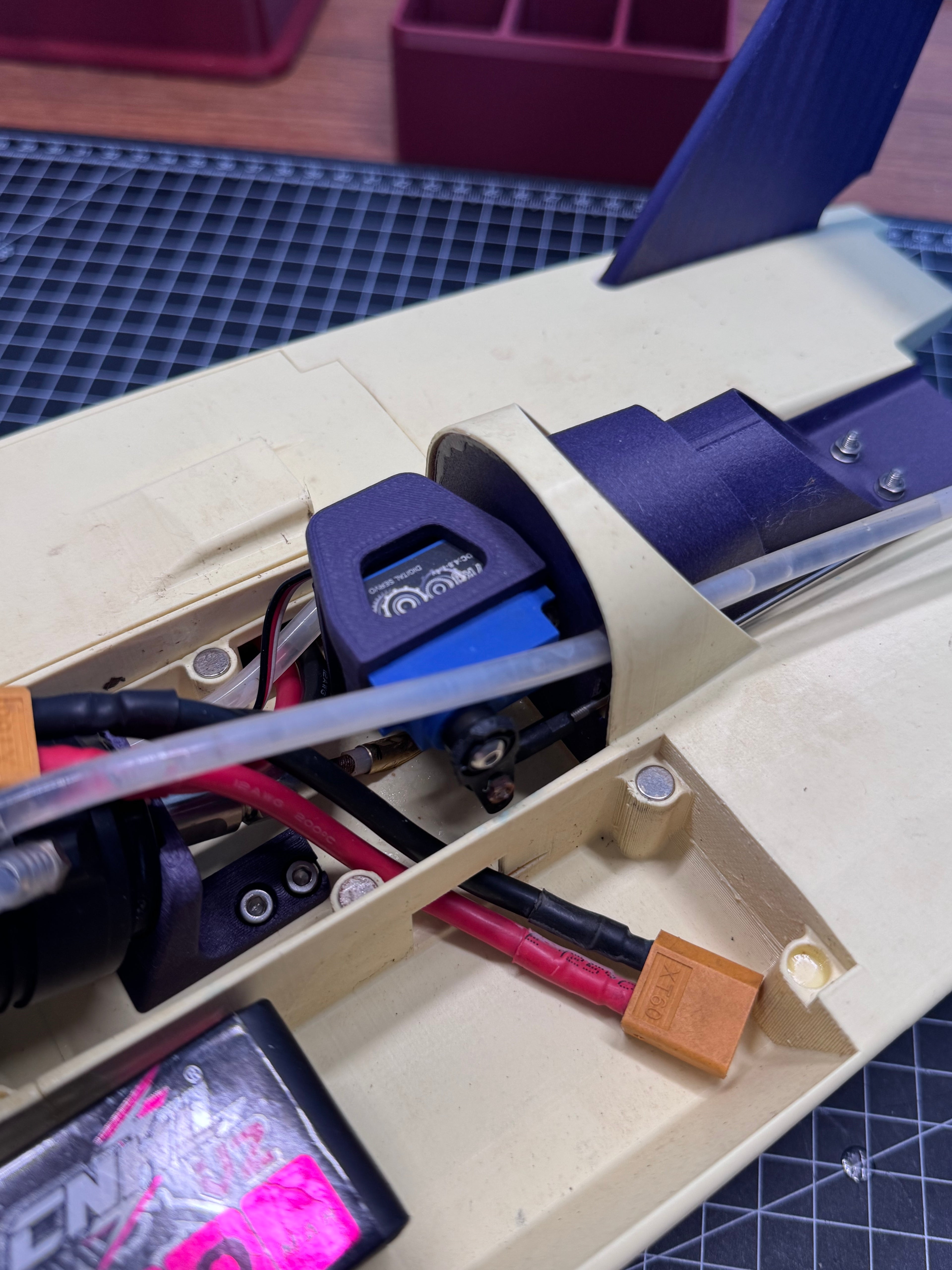

1x 7g waterproof micro servo
Remote control and receiver
Remote control and receiver
various small parts
(all components listed in BoM)
NOTE: This offer includes only STL/Step/3mf files for self-3d-printing
Print bed dimensions: 180x180x180 mm (length x width x height)

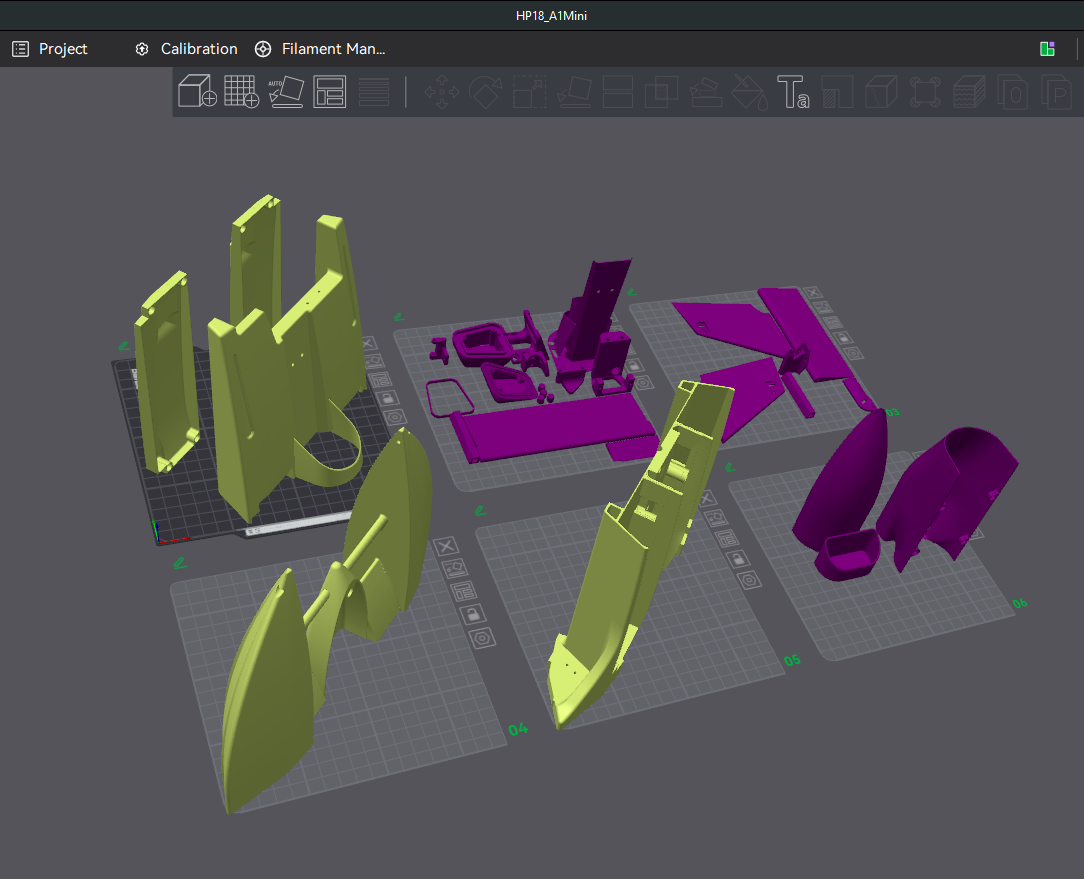

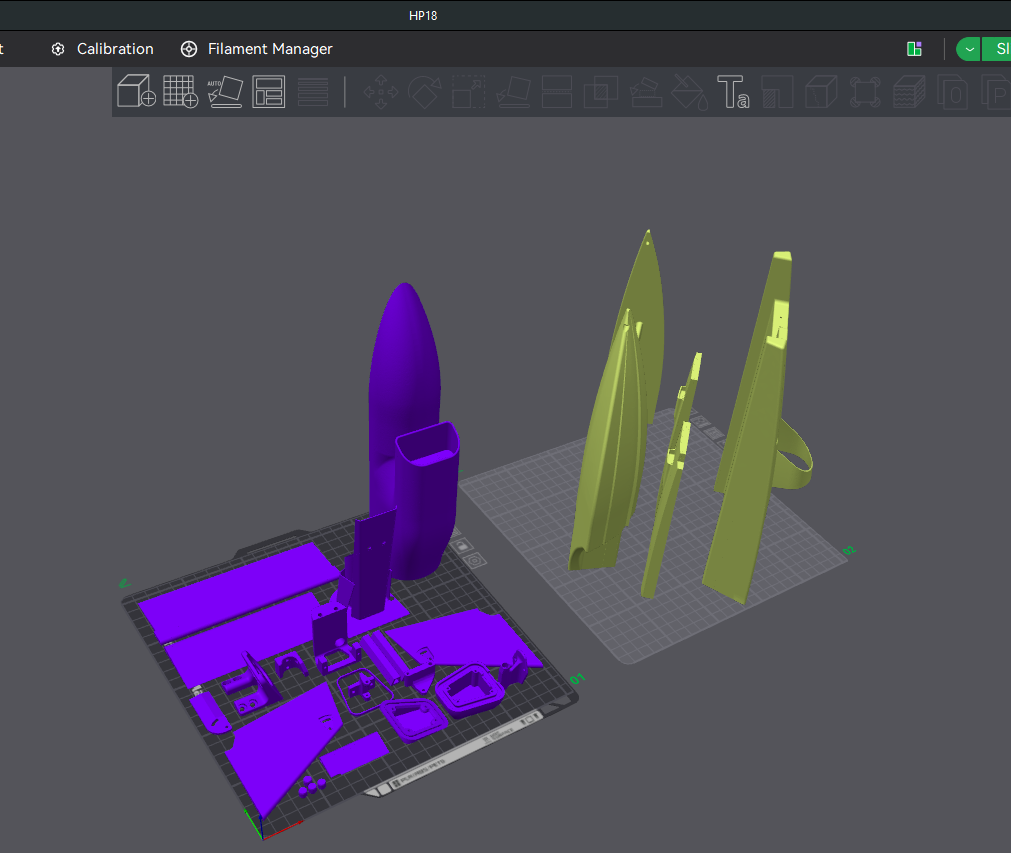

A 3mf slicer file is supplied for all components.
BambuLab A1Mini/A1/P1P/P1S/X1/H2D compatibility guaranteed!
NOTE: You can also order the HP18 as a Printed Parts KIT here
