JETLING - 1/6 Scale - Jet Fishing Boat - HPW40 incl. - HAVE-IT-ALL
€46,95
Sale price
€46,95
Regular price
Direct Download after Your Purchase
You love oldschool overpowered little fishing boats?
Here is our 1/6 Scale JETLING! The Jet pump powered sibling of our popular FJORDLING.
Here is our 1/6 Scale JETLING! The Jet pump powered sibling of our popular FJORDLING.
The model is powered by a 40 mm HPW40 jet drive with an attached 2.2 kW brushless motor on 3-6S LiPos.
You can also install your M-Jet 30 or M-Jet 35. There are separate hull print files for these pumps also as part of the files package.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, roof and add-on parts. In this set the HPW40 Jet Pump is also included.
You can also install your M-Jet 30 or M-Jet 35. There are separate hull print files for these pumps also as part of the files package.
The print data includes all the necessary data for printing the hull, HPW40 jet drive, deck, roof and add-on parts. In this set the HPW40 Jet Pump is also included.
2 BOAT VERSION IN ONE - you have the choice!!!
RACE - deck version
RACE - deck version
ECO - deck version
The data package (STL, STEP, 3mf) consists of approx. 165 different print parts (plus the ones from the outboard), with a total of over 250 components to be printed. The resulting level of detail is outstanding.
It therefore places high demands on the builder both in terms of assembly and driving.
In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (67 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).
The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.
For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with eSUN ASA+ and ABS+.
There is a matching trailer for your Axial SCX6 here

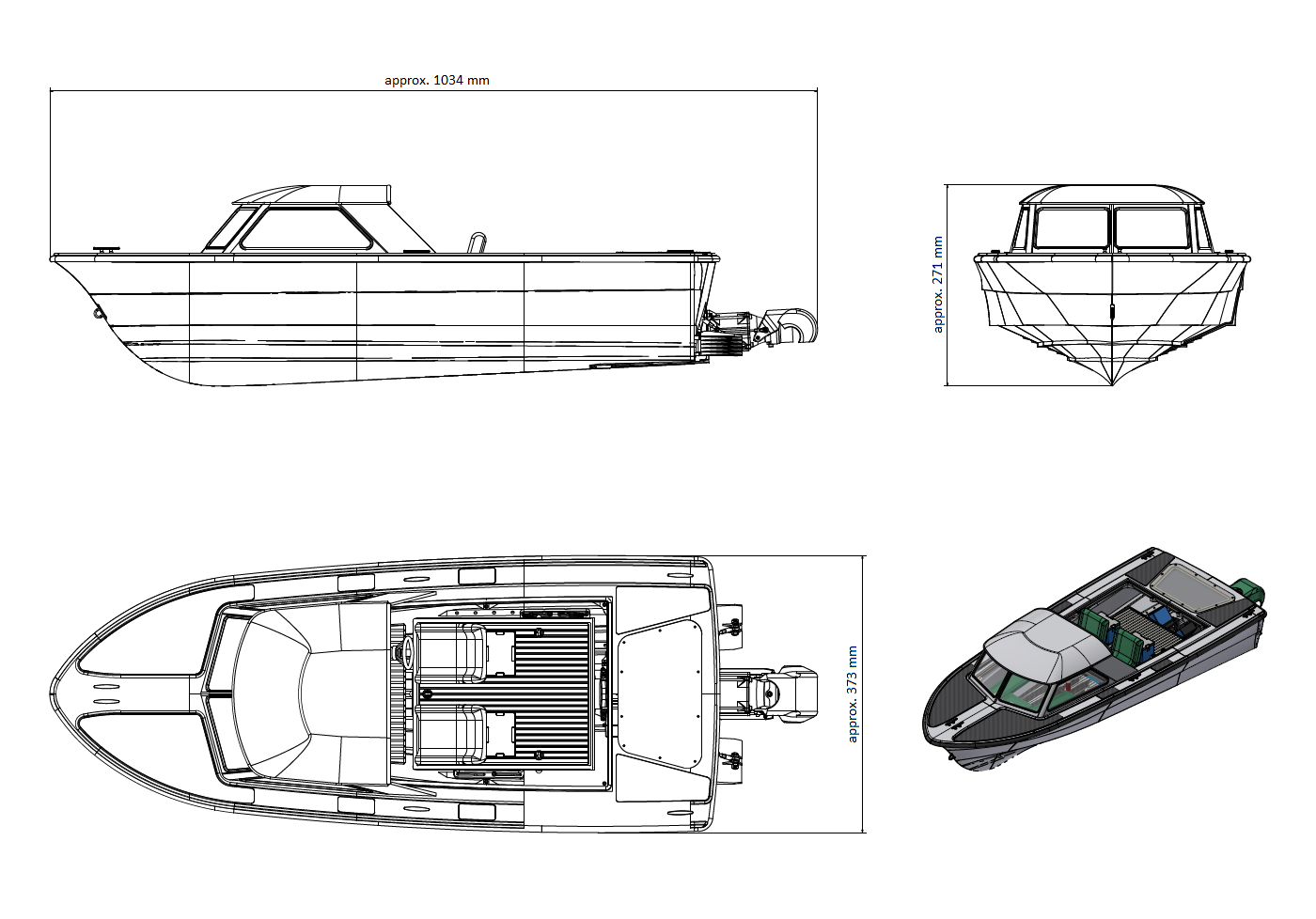

Technical data:
Length: 1034 mm
Width: 373 mm
Height: 271 mm
Weight (printed parts): approx. 3,400 g
Weight (complete): approx. 4.900 g
The model is aimed at experienced 3D printing users and model makers!!!
The following components are additionally required and are not part of the offer:
1x 4074 1400kV brushless motor
1x ESC 160A+
2x 3-6s Lipo
2x 25kg waterproof standard servo
Remote control and receiver
various small parts
(all components listed in BoM)
If you want to build the boat with an M-Jet Pump follow these links:
If you want to build the boat with an M-Jet Pump follow these links:
M-Jet 30 jet drive, you can get here
OR
M-Jet 35 jet drive, you can get here
M-Jet 35 jet drive, you can get here
NOTE: This offer includes only STL/Step/3mf files for self-3d-printing
Print bed dimensions: 250x250x250 mm (length x width x height)
For smaller installation spaces, the STL data must be cut independently or the arrangement in the printer must be changed (additional support may be necessary).
A 3mf slicer file is supplied for all components.
BambuLab A1/P1P/P1S/X1/H2D compatibility guaranteed!
