MINI RIPPER - 1/10 Sclae River Jet Boat - HPW25 Incl.

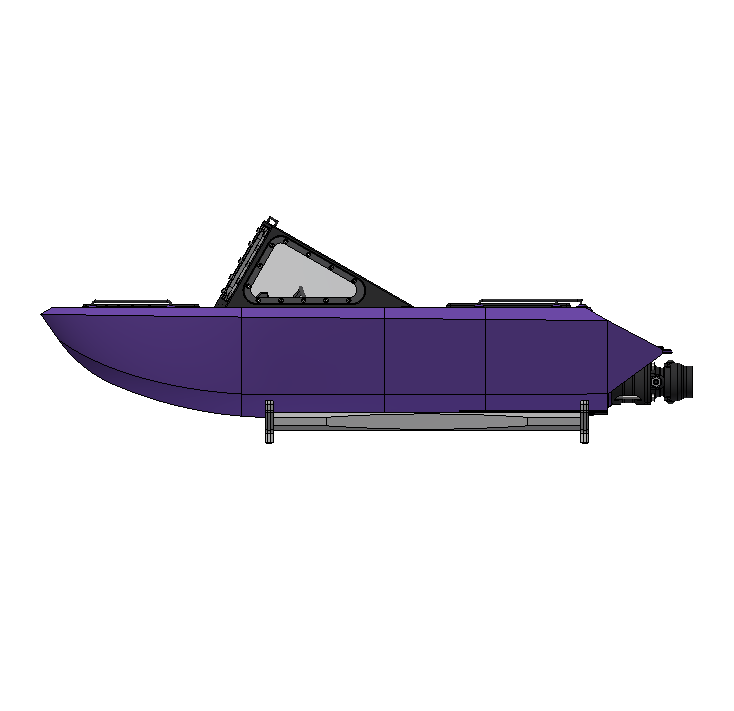

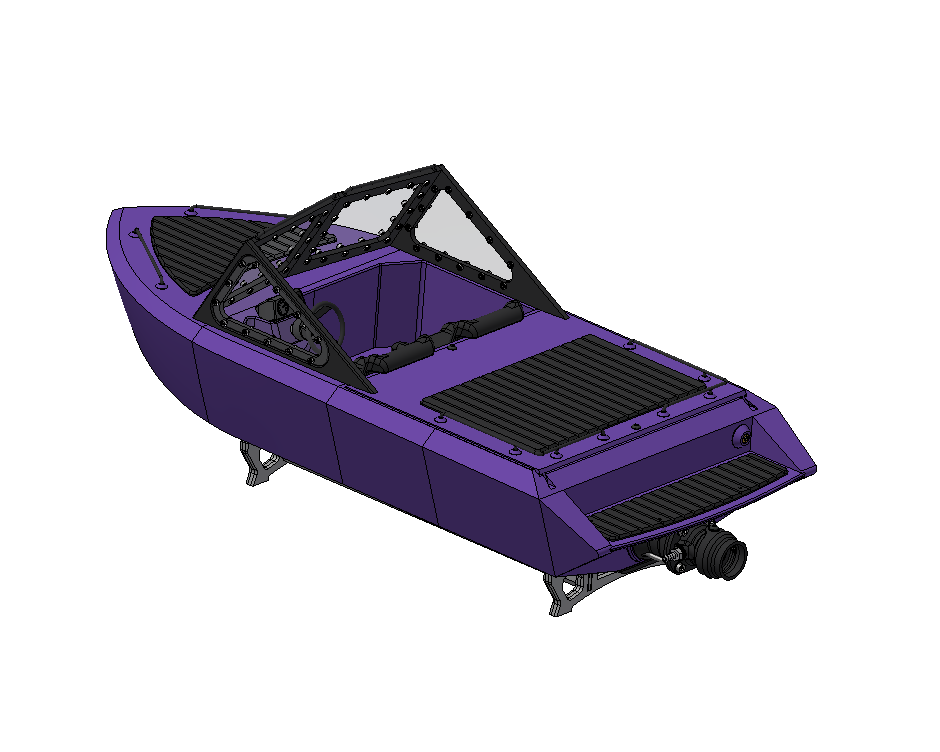

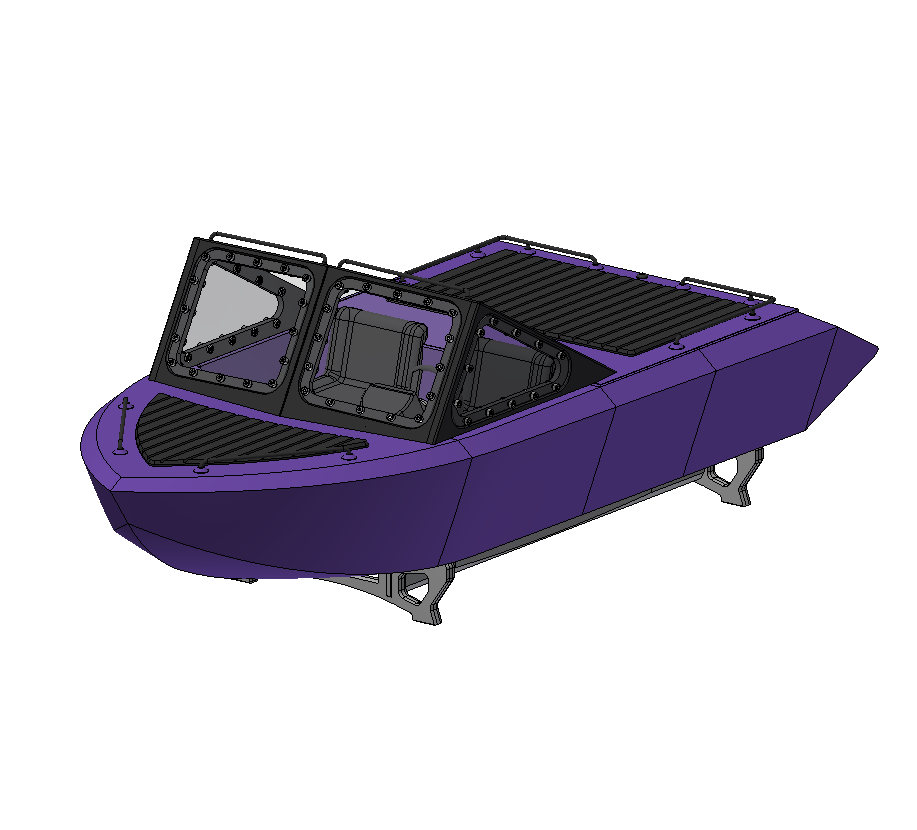

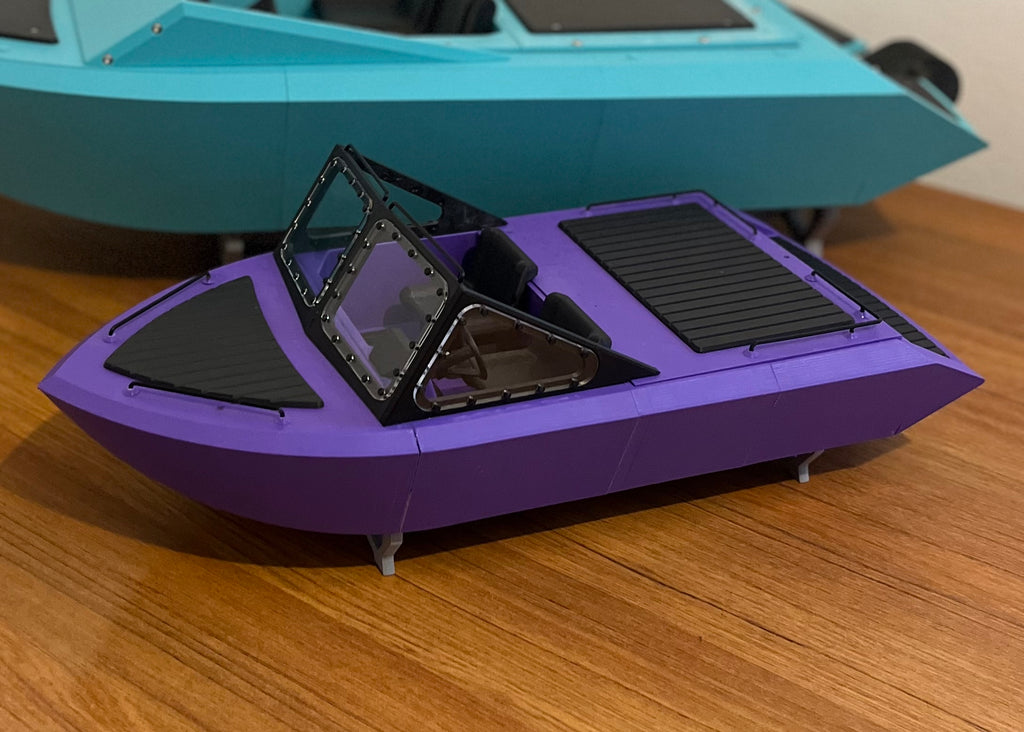

This design is the small version of our popular River Jetboat in 1/10 scale. The model is powered by a 25 mm jet drive with an attached 1 kW brushless motor on maximum 3S LiPo. The print data includes all the necessary data for printing the hull, jet drive, windshield, railing, planking, cockpit, boat stand and accessories. The Mini Ripper is extremely maneuverable and fast, yet easy to drive and a lot of fun to assemble and drive. In addition to the print data, the data package contains detailed, illustrated assembly instructions (21 pages) as well as illustrated printing instructions (24 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA, PETG or ABS. The hull gives the boat great stability and also allows it to pass over obstacles such as stones or branches. This means that there are no limits to its appropriate use. For particularly demanding rides, we recommend printing in ABS.

The HPW25 jet drives should preferably be printed in ABS, alternatively you can also try printing in PLA+, PLA tough or CF filaments.

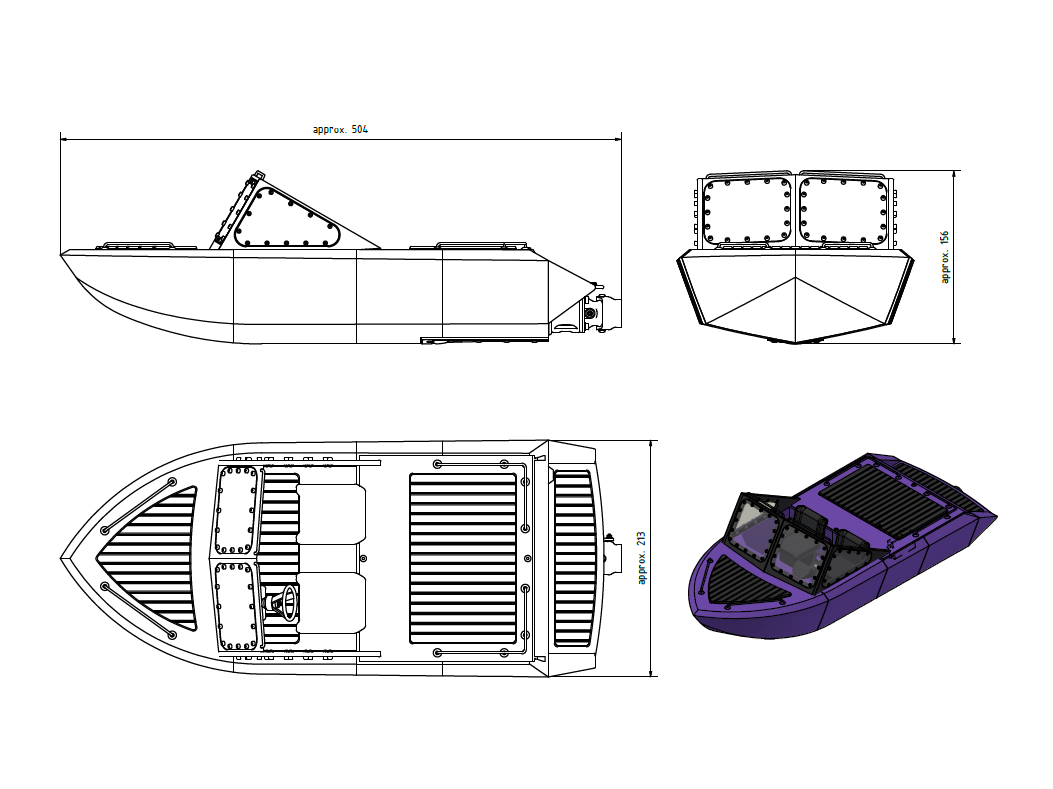

Technical data:

Length: 504 mm

Width: 213 mm

Height: 156 mm

Weight (printed parts): approx. 1,300 g

Weight (complete): 2,610 g

The model is aimed at experienced 3D printing users.

The following components are additionally required and are not part of the offer:

2948 3450kV brushless motor

ESC 70A

1x max. 3s Lipo (weight less than 320 g)

1x 25kg waterproof standard servo

Remote control and receiver

various small parts

(all components listed in BoM)
