PURPLE ACE - 1/6 SCALE SPRINT JET BOAT - HPW40 INCL.

Including HPW40 2-Stage Water Jet Pump water jet drive!

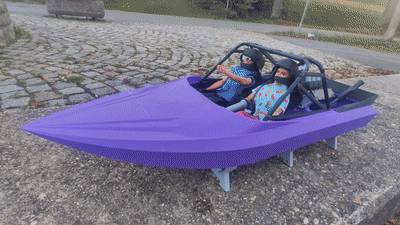

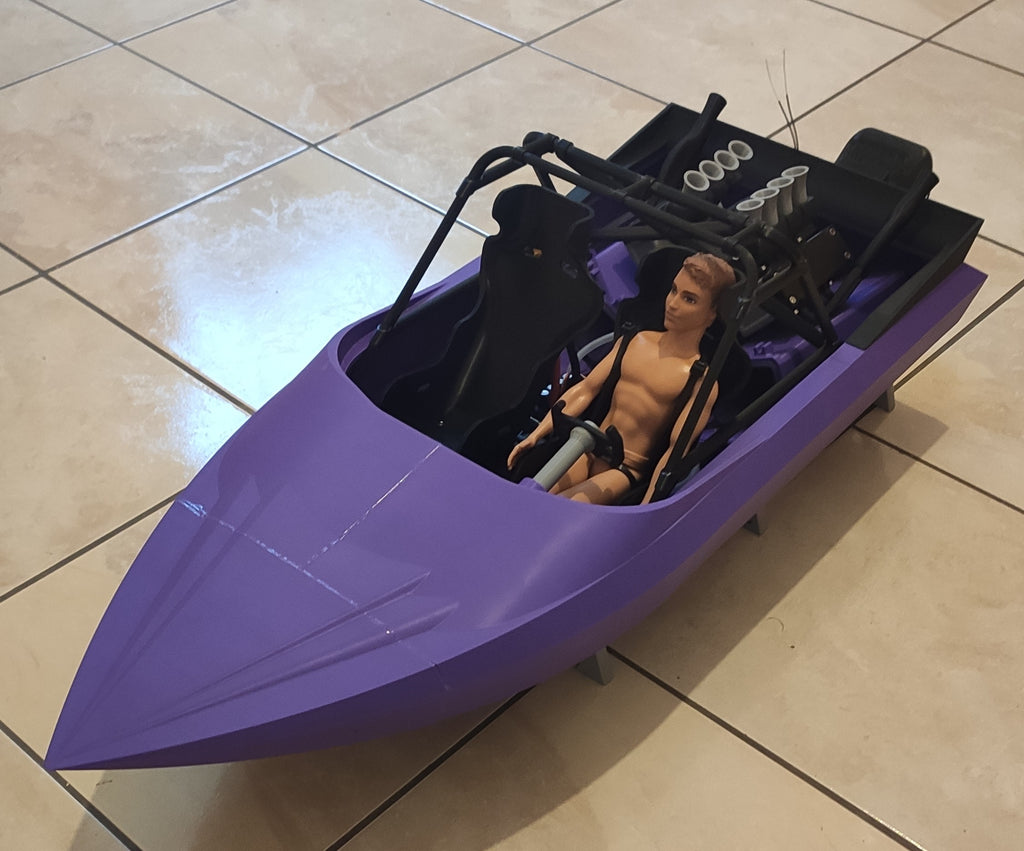

This design is a true-to-original RC model of the popular Sprint jet boats in 1/6 scale. The model is powered by our HPW40 jet drive with attached 2.2 kW brushless motor on 3-6S LiPos. The print data includes all necessary data for printing the hull, jet drive, V8 motor cover, waterproof Lipo boxes, roll cage, boat stand and accessories. Purple Ace is extremely maneuverable and fast. It's a lot of fun, both to assemble and to drive.

In addition to the print data, the data package contains detailed, illustrated assembly instructions (21 pages) as well as illustrated printing instructions (14 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA, PETG or ABS.

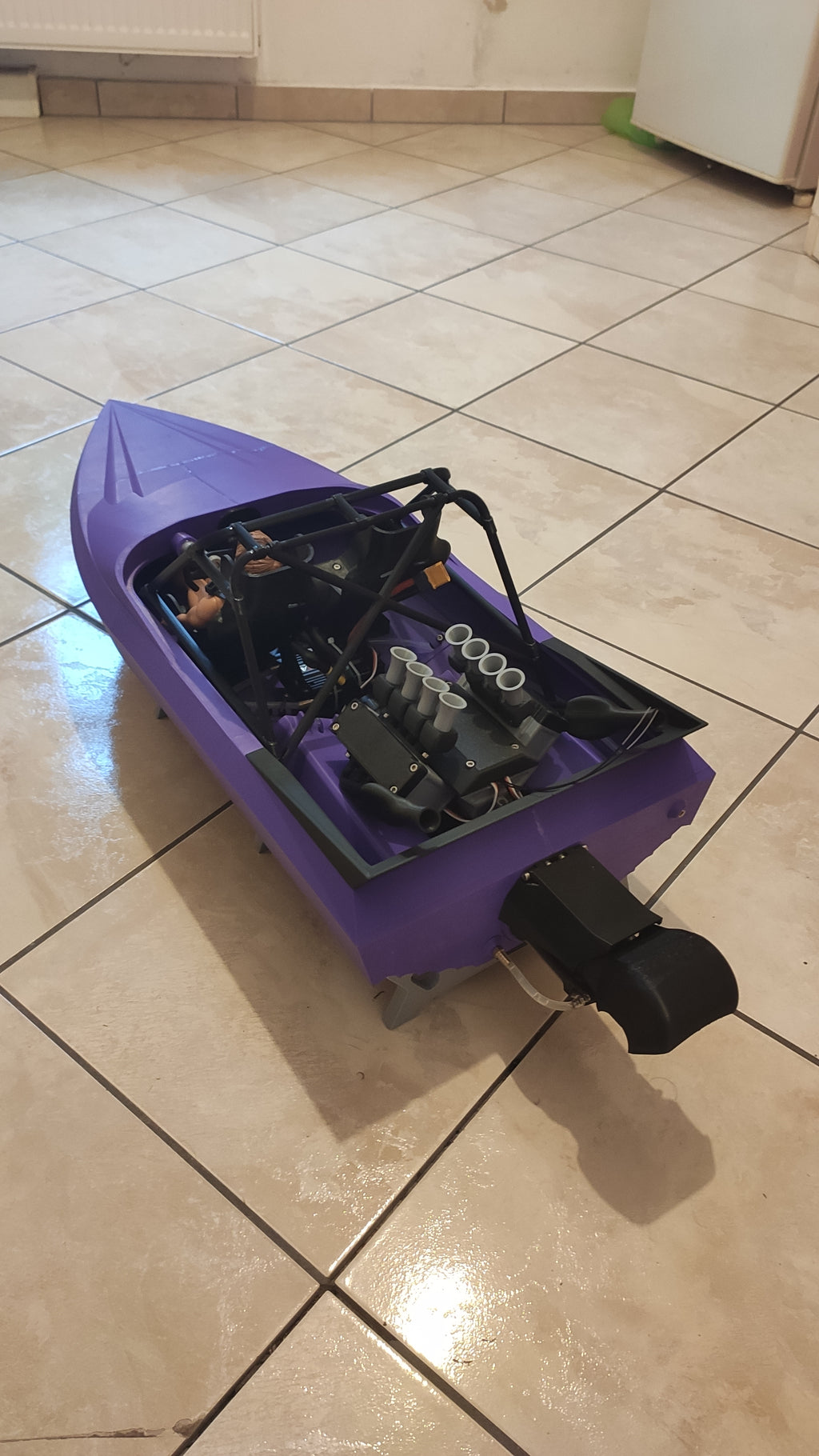

The boat is designed with an open structure, the sensitive LiPos are housed in 2 waterproof boxes. The receiver is also located in a waterproof box.

The double-walled hull gives the boat great stability.

This means that there are no limits to appropriate use. For particularly demanding trips, we recommend printing in ABS.

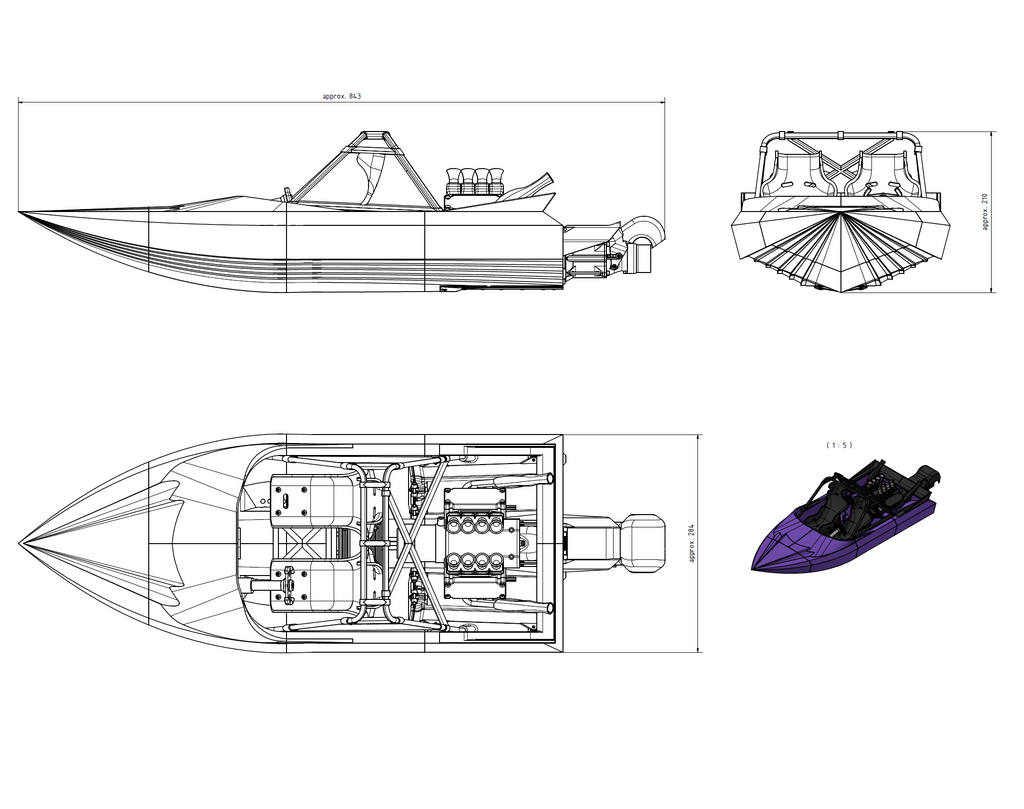

Technical data:

Length: 843 mm

Width: 284 mm

Height: 210 mm

Weight (printed parts): approx. 2000 g

Weight (complete): 4040 g

The model is aimed at experienced 3D printing users.

The following components are additionally required and are not part of the offer:

4074 1400kV brushless motor

ESC 150A

2x 3s Lipo (5200 mAh, maximum dimensions 160x46x28.5)

2x 25kg waterproof standard servo

3-channel remote control and receiver

various small parts

(all parts listed in BoM)

ATTENTION: Driver (Ken) and co-driver (Sven) are important members of HillPrinties and are NOT part of the offer.
