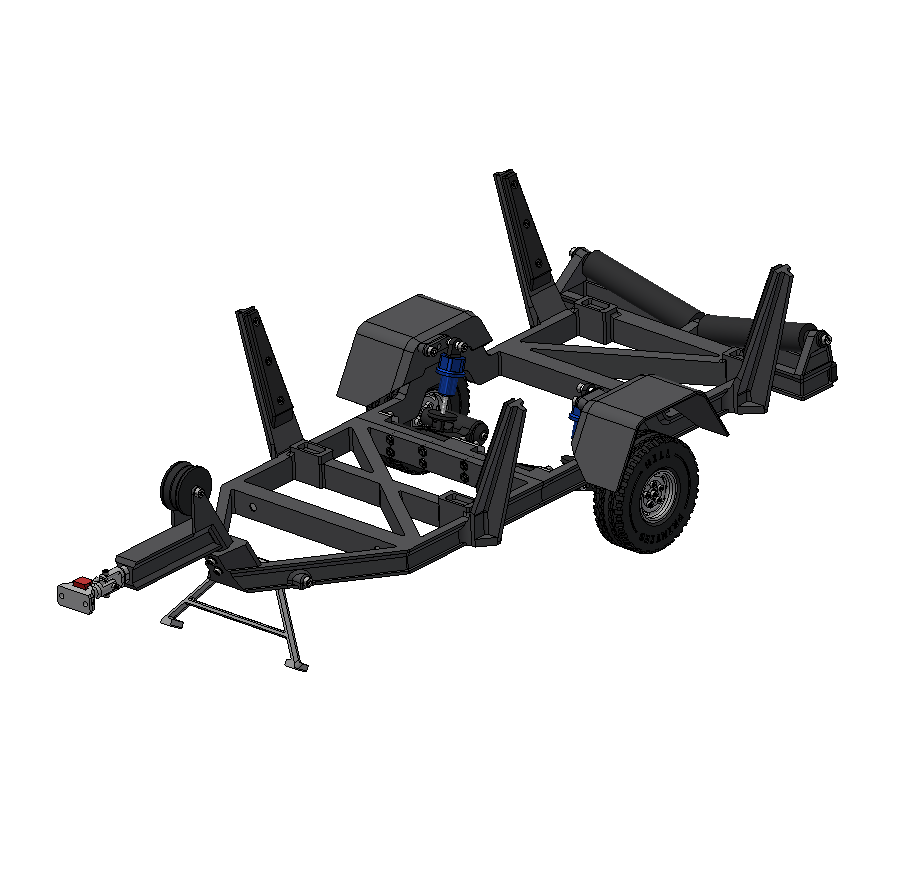

TRAILER For MiniRipper - 1/10 Scale Trailer for Crawlers

This is the trailer for your 1/10 scale crawler to bring the popular 1/10 scale "MiniRIPPER/MiniSPEEDSTER" river jet boat to the water in style. The model is characterized by its scale look and is equipped with a sprung axle. In addition, the trailer can also be parked with the boat thanks to the fold-out and fold-in support. The print data includes all the necessary data for printing the frame, axles, support and accessories. The trailer has limited off-road capability and is fitted with 2 70 mm scale crawler tires (purchased or self-printed).

Great fun both to assemble and to drive.

In addition to the print data, the data package contains detailed, illustrated assembly instructions (19 pages) as well as illustrated printing instructions (17 pages). A complete parts list is also included as an Excel document. This contains a list of all required pressure parts, as well as a detailed description of the required add-on parts (incl. recommended tires, shock absorbers, etc.)

All documents are listed here

The model can be printed in PLA, PETG or ABS. For particularly demanding rides, we recommend printing in ABS.

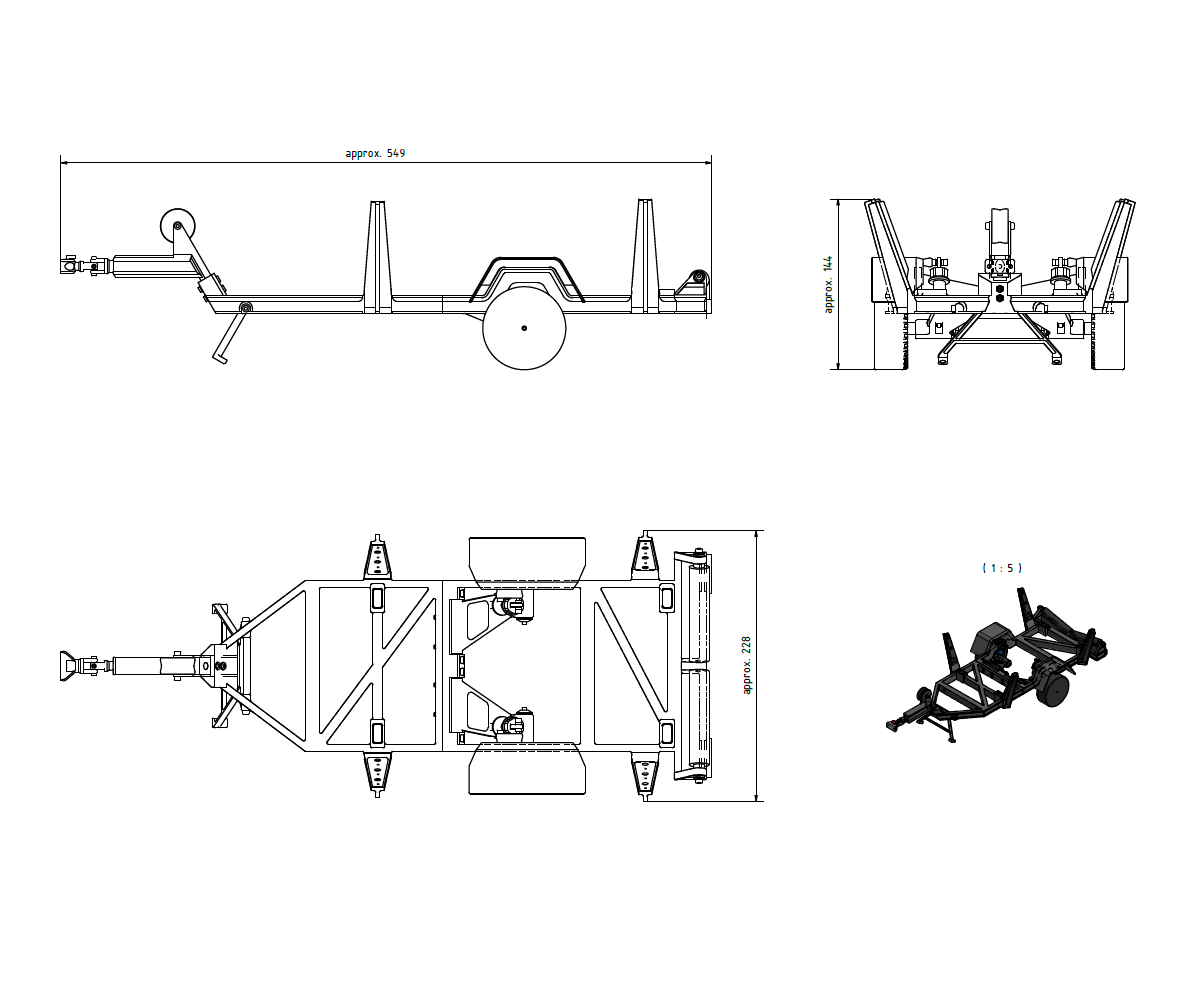

Technical data:

Length: 549 mm

Width: 228 mm

Height: 144 mm

Weight (printed parts): approx. 500 g

Weight (complete): 750 g

The model is aimed at experienced 3D printing users.

Click here to go directly to the appropriate boats:

1/10 Scale MiniRIPPER

1/10 Scale MiniSPEEDSTER

The following components are additionally required and are not part of the offer:

1x trailer coupling

2x 70 mm crawler tires (Hex5)

2x oil pressure shock absorbers 54 mm long

4x ball bearings DIN 625 - 115

various small parts

(all components listed in BoM)

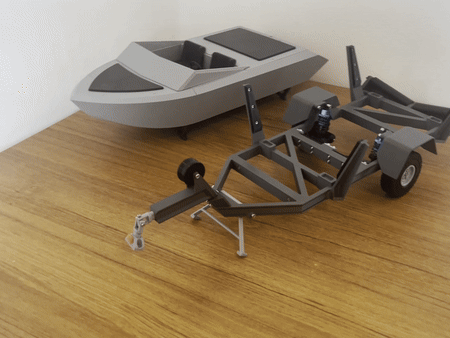

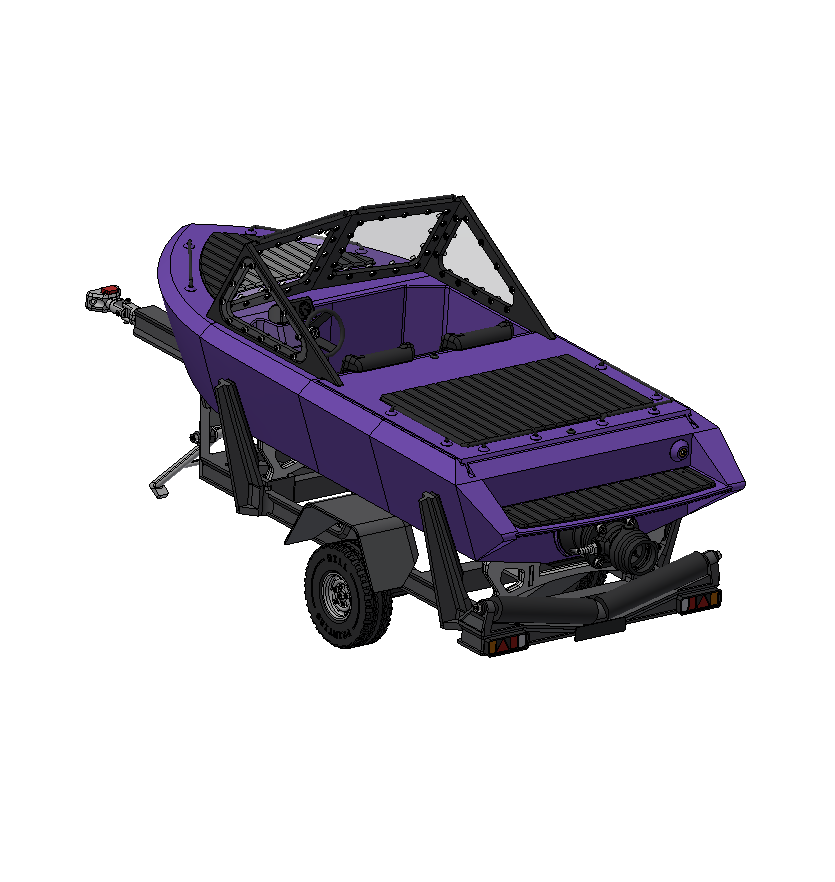

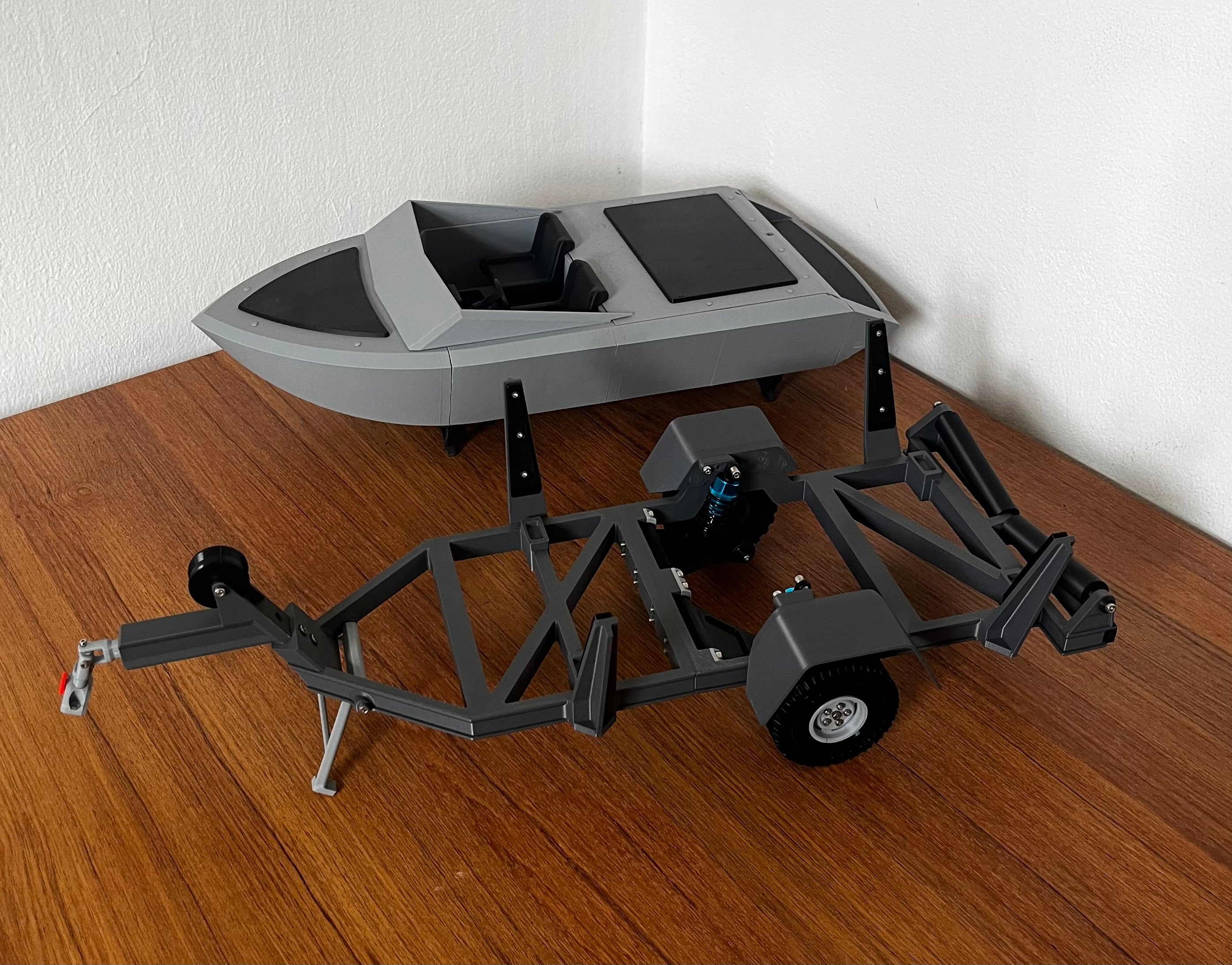

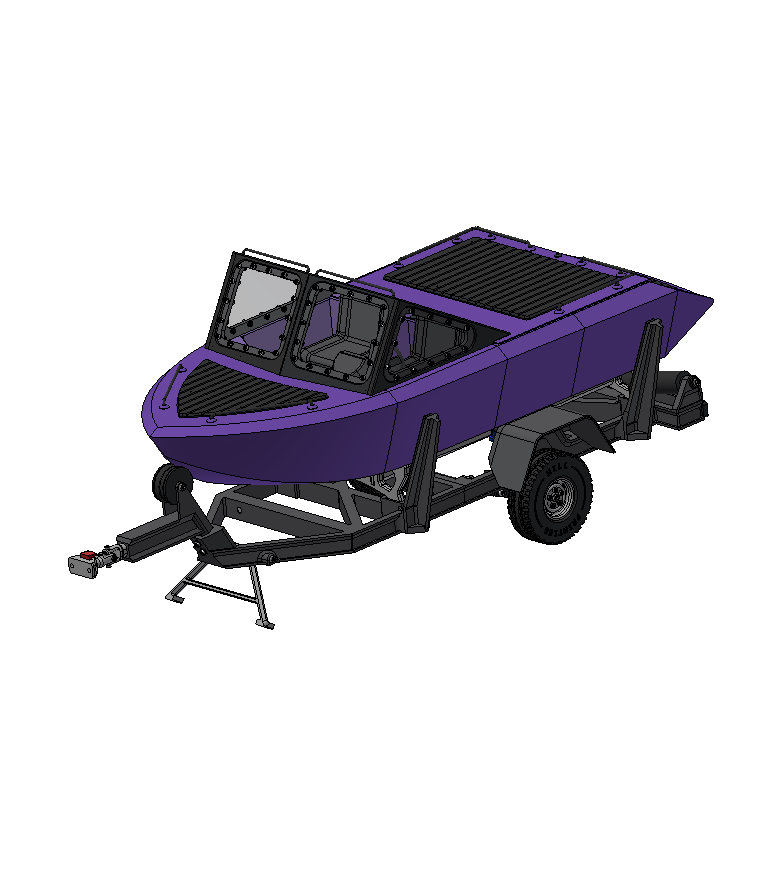

ATTENTION: The boat shown in the photos is NOT part of the offer.
