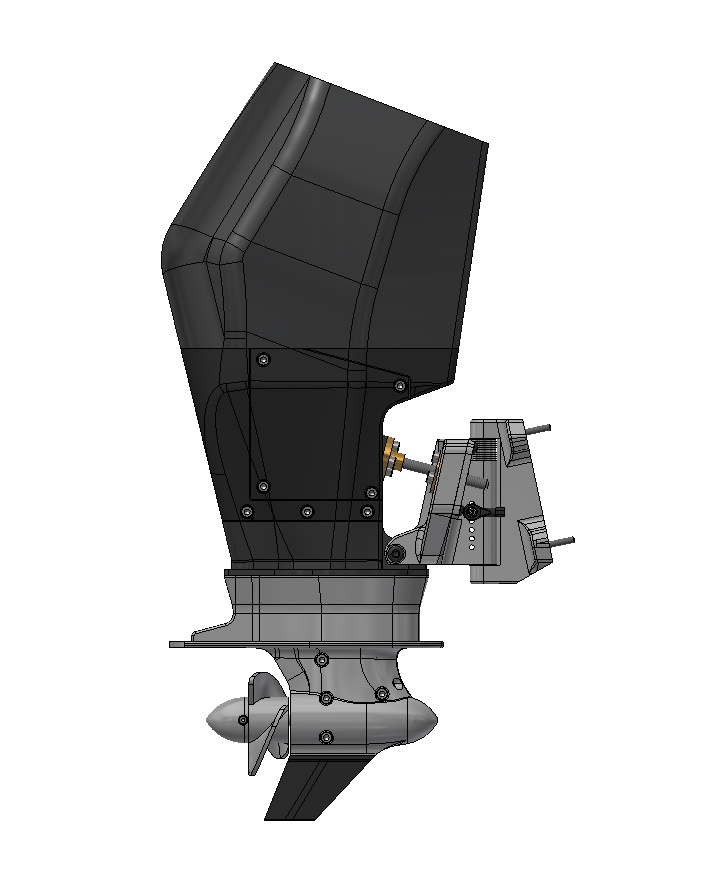

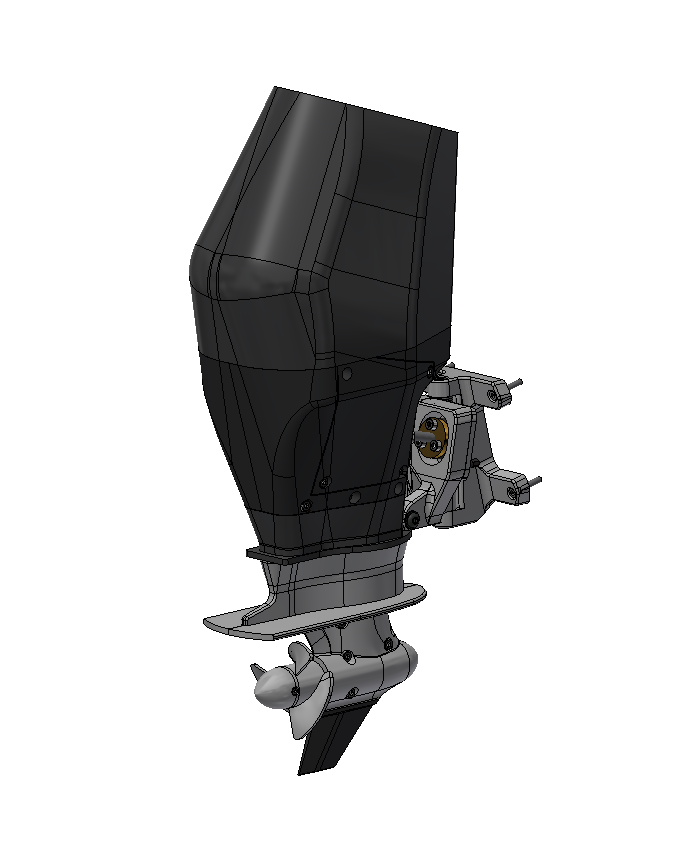

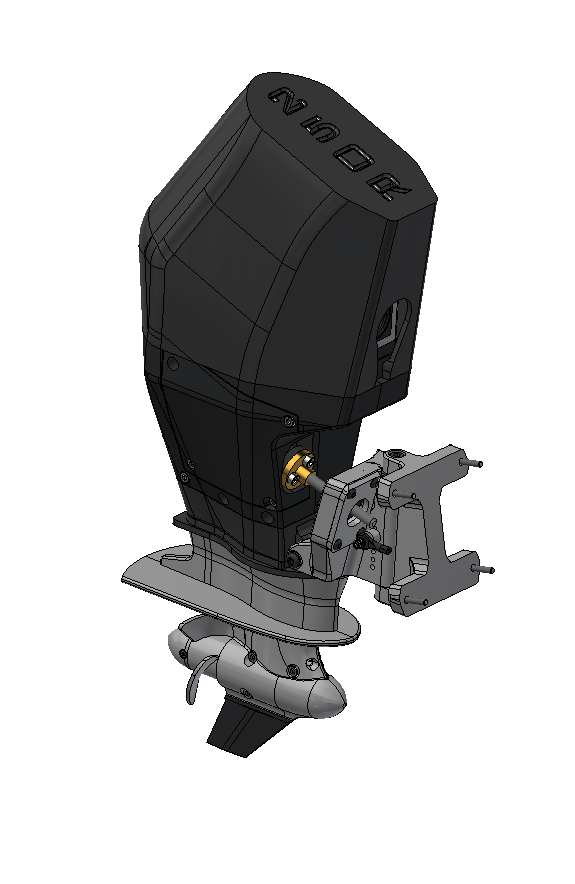

HPW250RT - 1/6 Scale - Trimmable Outboard

This model is a 1/6 scale version of a Mercury 250R style Outboard.

Powered by a 2.2 kW brushless motor on 3-4S LiPos (6S to your own responsibility) and trimmable by a Injora servo winch this is a unique design and able to push forward your Scale Model.

The print data includes all the necessary data for printing outboard housing, drive case, props, brackets etc.

HPW250RT is our first outboard boat and will fit a series of outboard boats coming in the nearby future.

2 VERSIONS IN ONE - you have the choice!!!

HPW250RT - trimmable outboard with Injora Servo Winch

HPW250R - Fix-trim outboard with trim sticks

Motor and ESC are watercooled by an electric water pump.

The data package (STL, STEP, 3mf) consists of approx. 30 different print parts. The resulting level of detail is outstanding.

It therefore places high demands on the builder both in terms of assembly and driving.

In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (32 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA tough, PETG or ABS/ASA.

For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with eSUN ASA+ and ABS+.

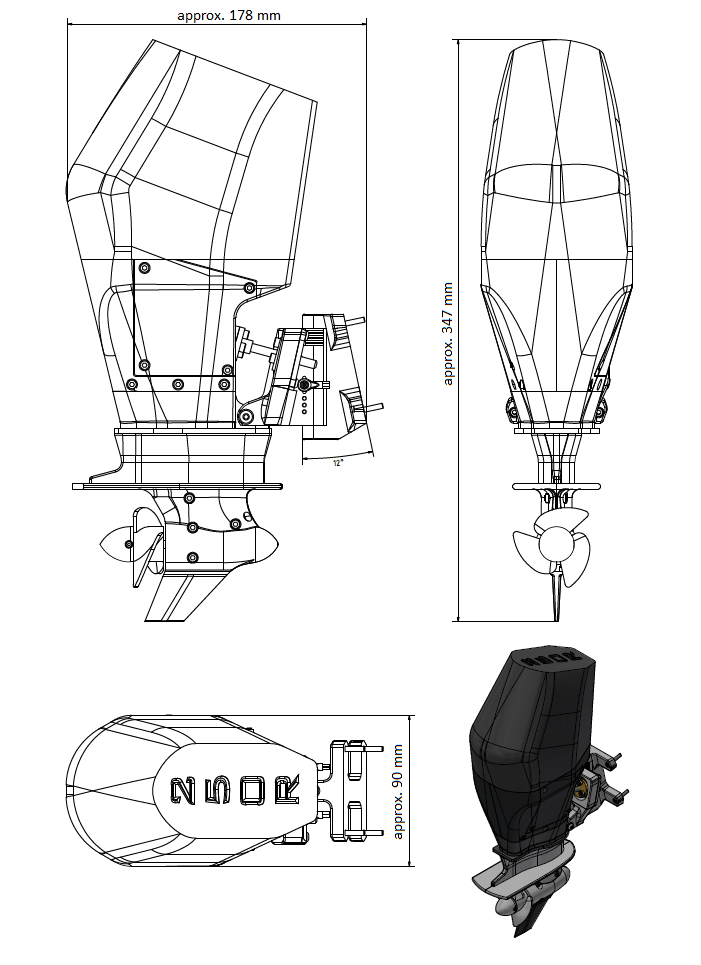

Technical data:

Length: 178 mm

Width: 90 mm

Height: 347 mm

Weight (printed parts): approx. 531 g

Weight (complete): approx. 1.000 g

The model is aimed at experienced 3D printing users and model makers!!!

The following components are additionally required and are not part of the offer:

1x 4074 1400kV brushless motor

1x ESC 160A+

2x 3-4s Lipo (6s to your own responsibility)

1x 25kg waterproof standard servo

1x servo winch (for the outboard)

1x water pump (for the outboard)

Remote control and receiver

various small parts

(all components listed in BoM)
