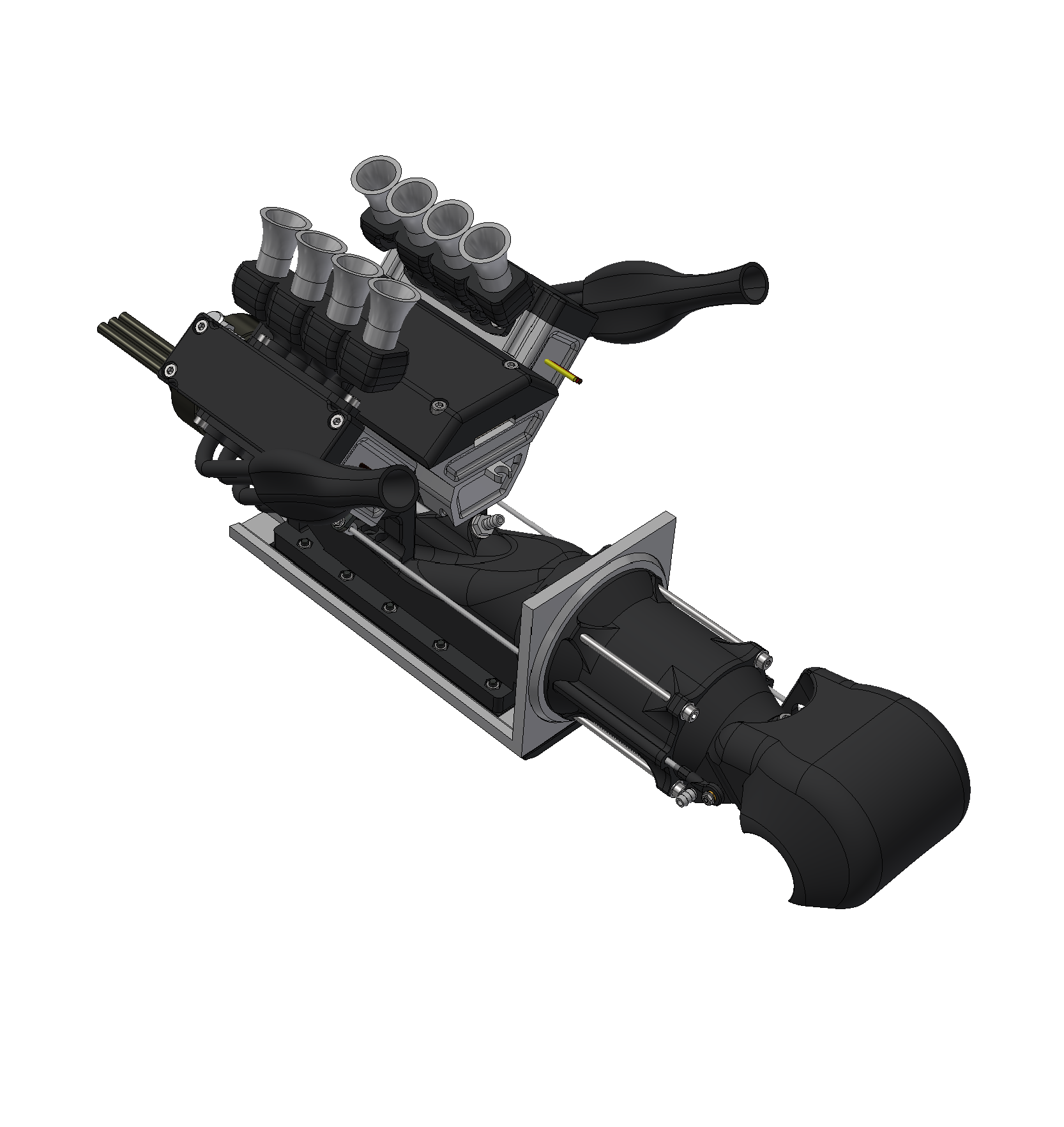

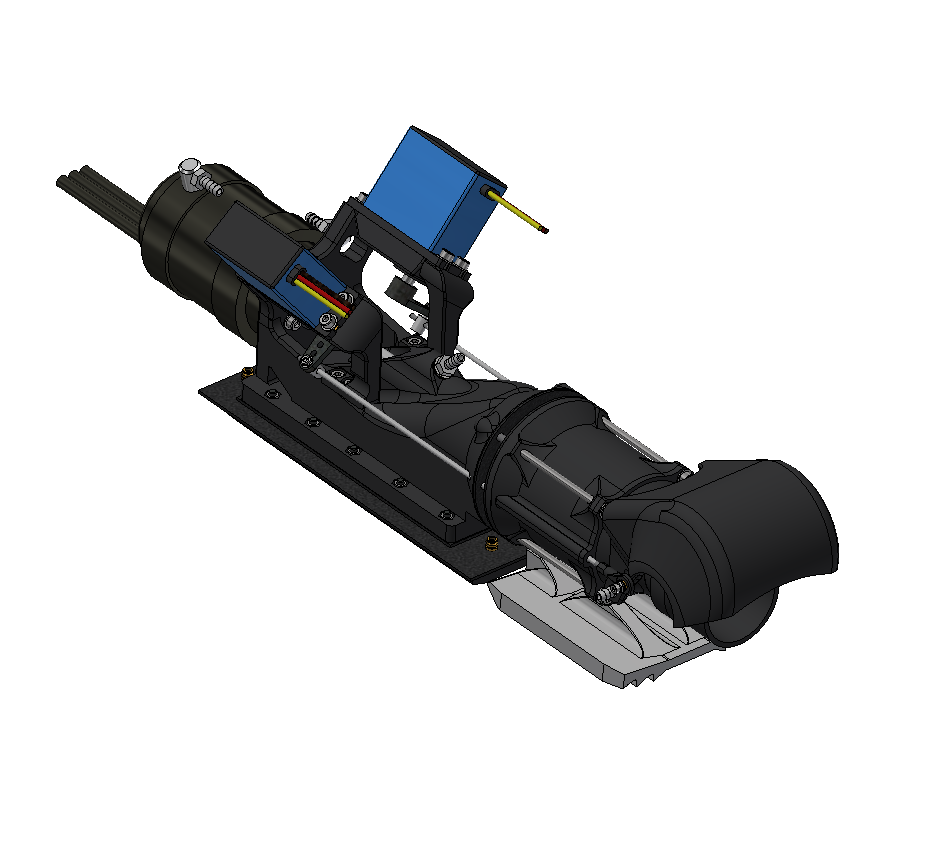

HPW40 2-Stage Water Jet Pump

This design is a true-to-original 2-stage water jet drive for RC models.

The jet drive has a nominal diameter of 40 mm and is designed for operation with a 2.0-2.5 kW brushless motor on 3-6S LiPos.

The print data includes 3 assemblies:

All necessary data for printing the housing, stator, stator housing, impellers and accessories are included.

NOTE:

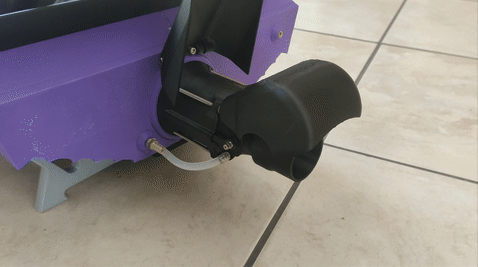

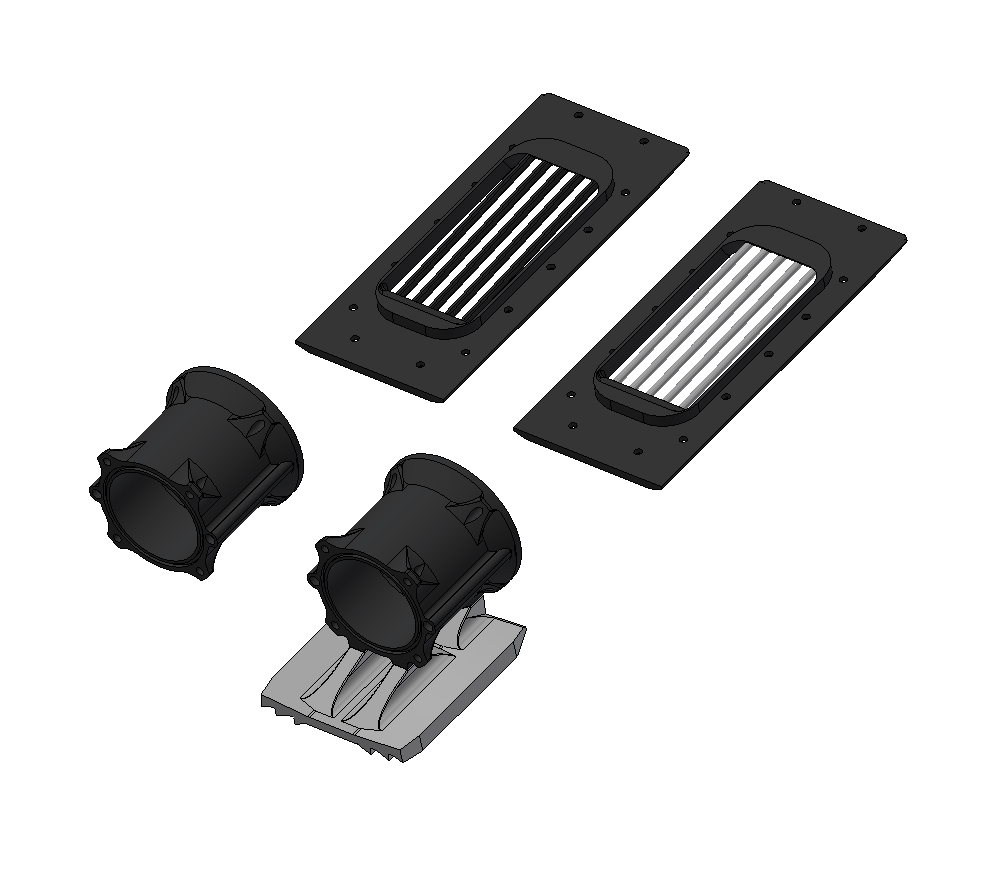

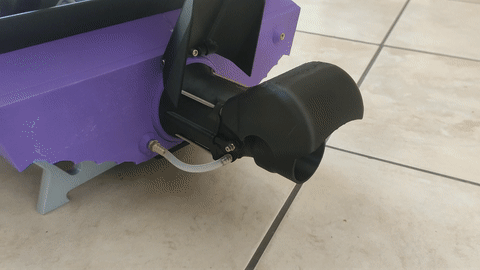

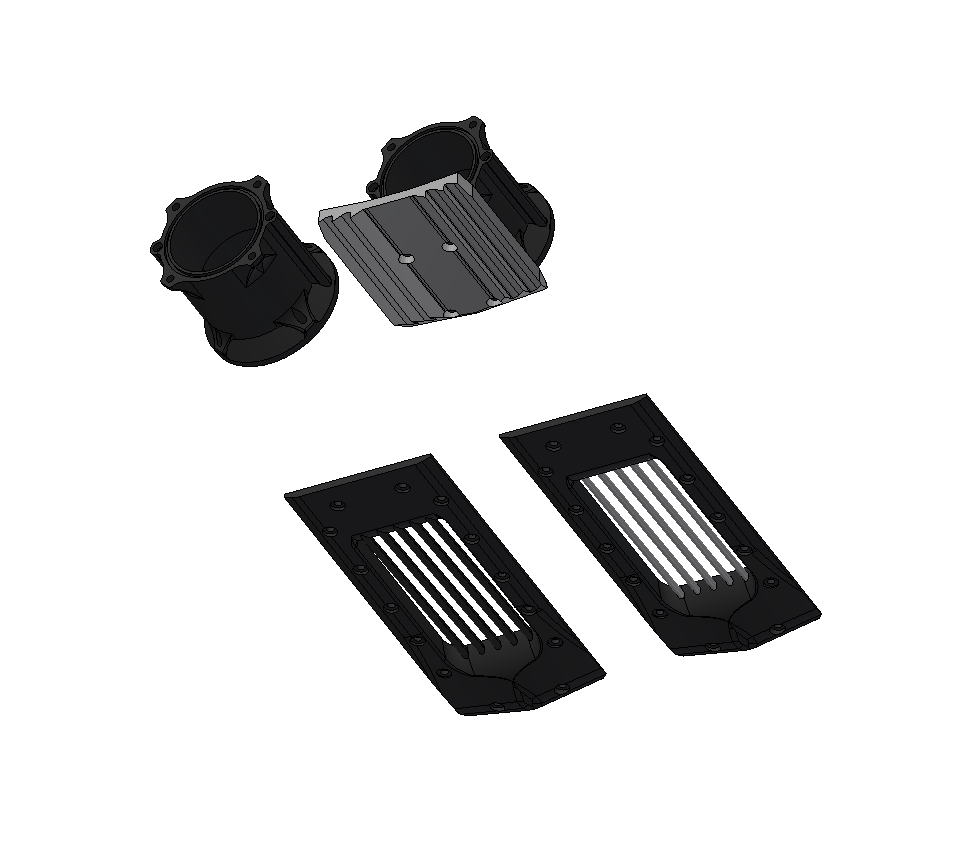

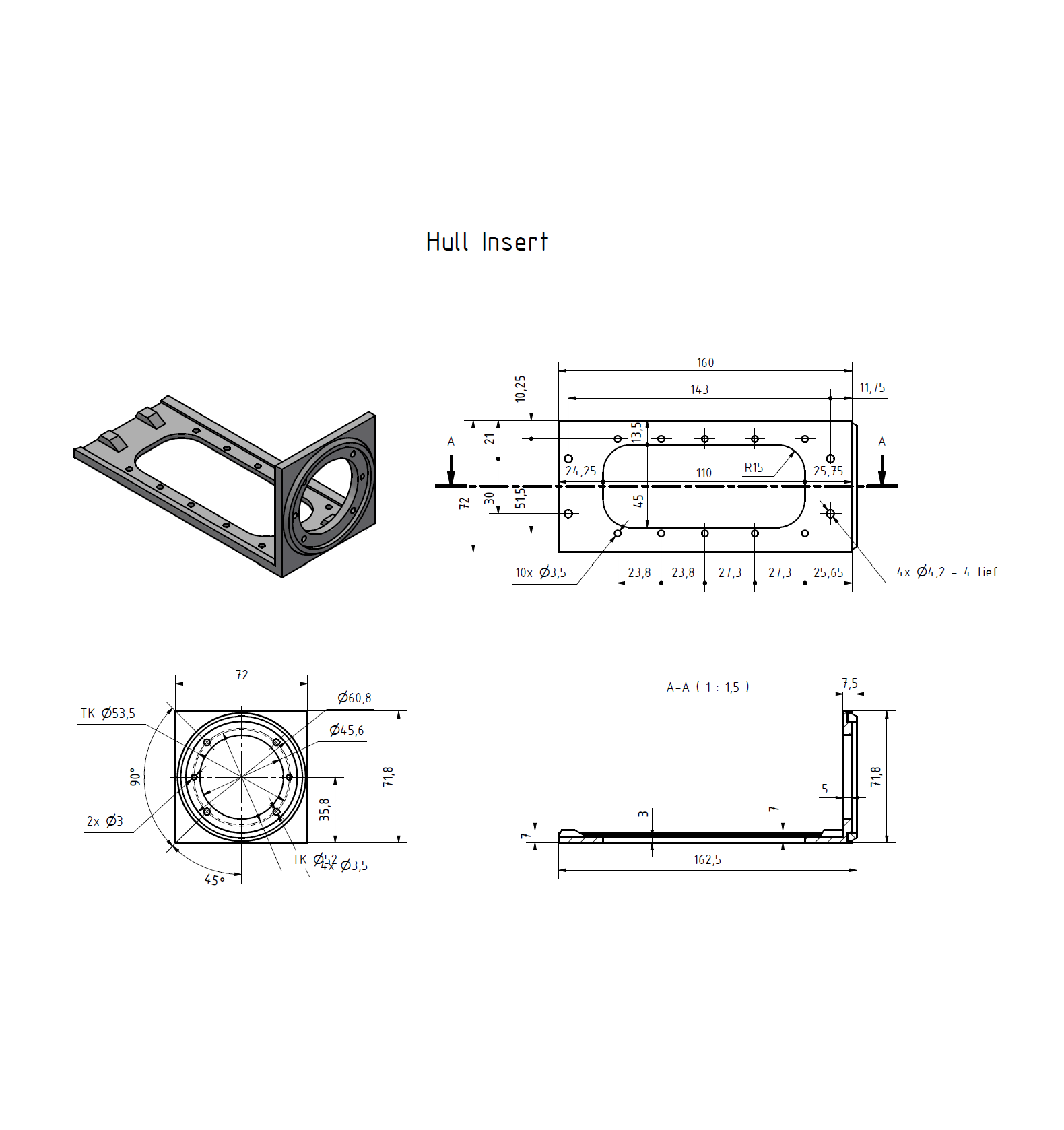

The jet drive can be installed in any boat thanks to the included hull insert. The hull insert can simply be glued into your hull.

The HPW40 is extremely powerful and achieves amazingly high top speeds for jet propulsion systems. Thanks to the 2-stage design, our water jet drives are insensitive to the intake of air.

The drive is a lot of fun, both to assemble and to drive.

In addition to the print data, the data package contains detailed, illustrated assembly instructions (19 pages) as well as illustrated printing instructions (23 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, servo, etc.)

All documents are listed here

The model should preferably be printed in ABS, alternatively an attempt can also be made to print in PLA+, PLA tough or CF filaments.

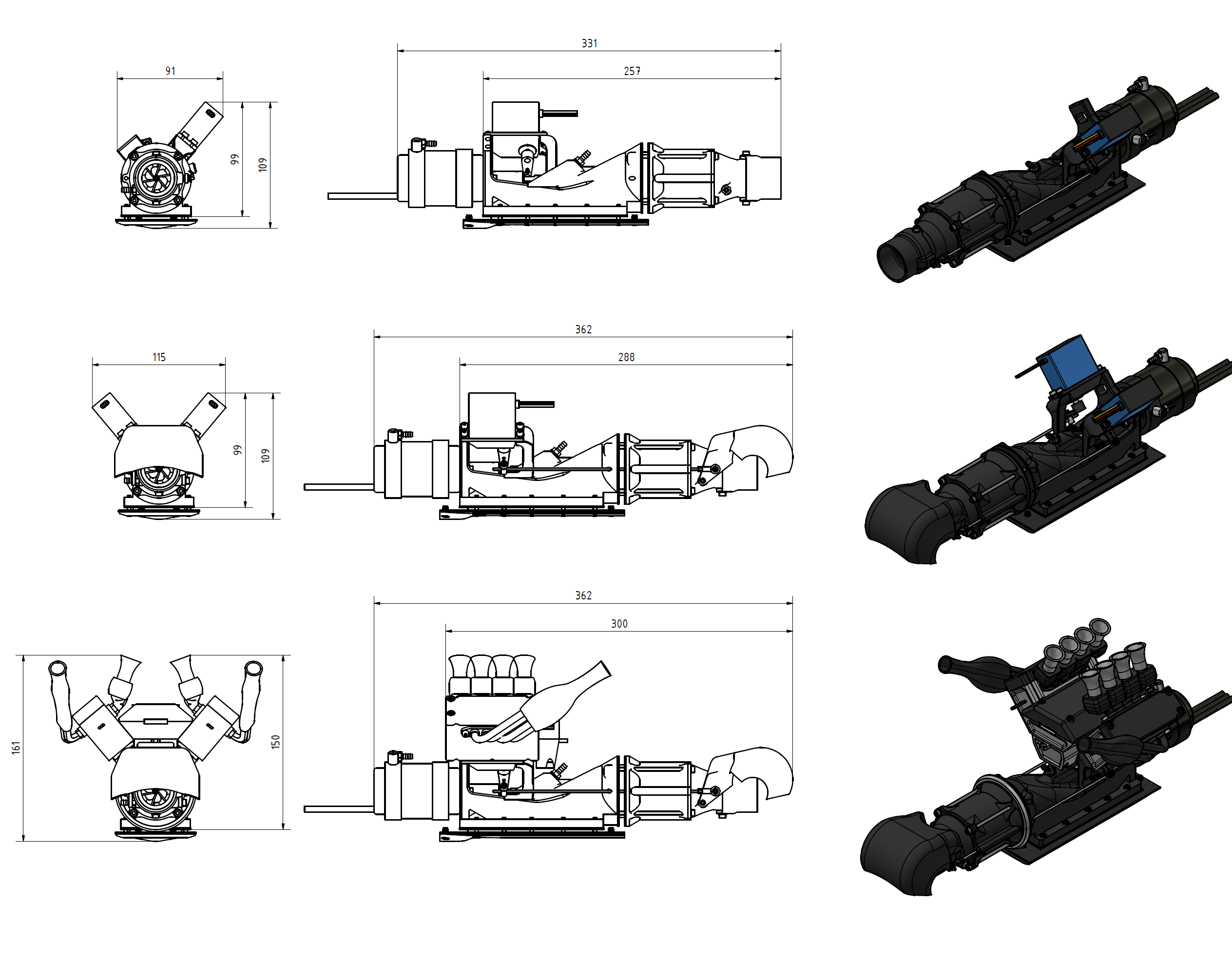

Technical data:

Length: 284 mm

Length with 4074 motor: 358 mm

Width: 114 mm

Height: 106 mm

Weight (printed parts): approx. 300 g

Weight (complete): 940 g

The model is aimed at experienced 3D printing users.

The following components are additionally required and are not part of the offer:

4074 1400kV brushless motor

ESC 150A

2x 3s Lipo

1-2 25 kg waterproof standard servo

1x shaft seal ring 5x16x5

2x sealed stainless steel ball bearing 5x13x4

1x ground 5 mm stainless steel shaft 200 mm long

Remote control and receiver

Various small parts

(all components listed in BoM)
