JETLING - 1/6 Scale - Jet Fishing Boat - W/O Jet Pump

You love oldschool overpowered little fishing boats?

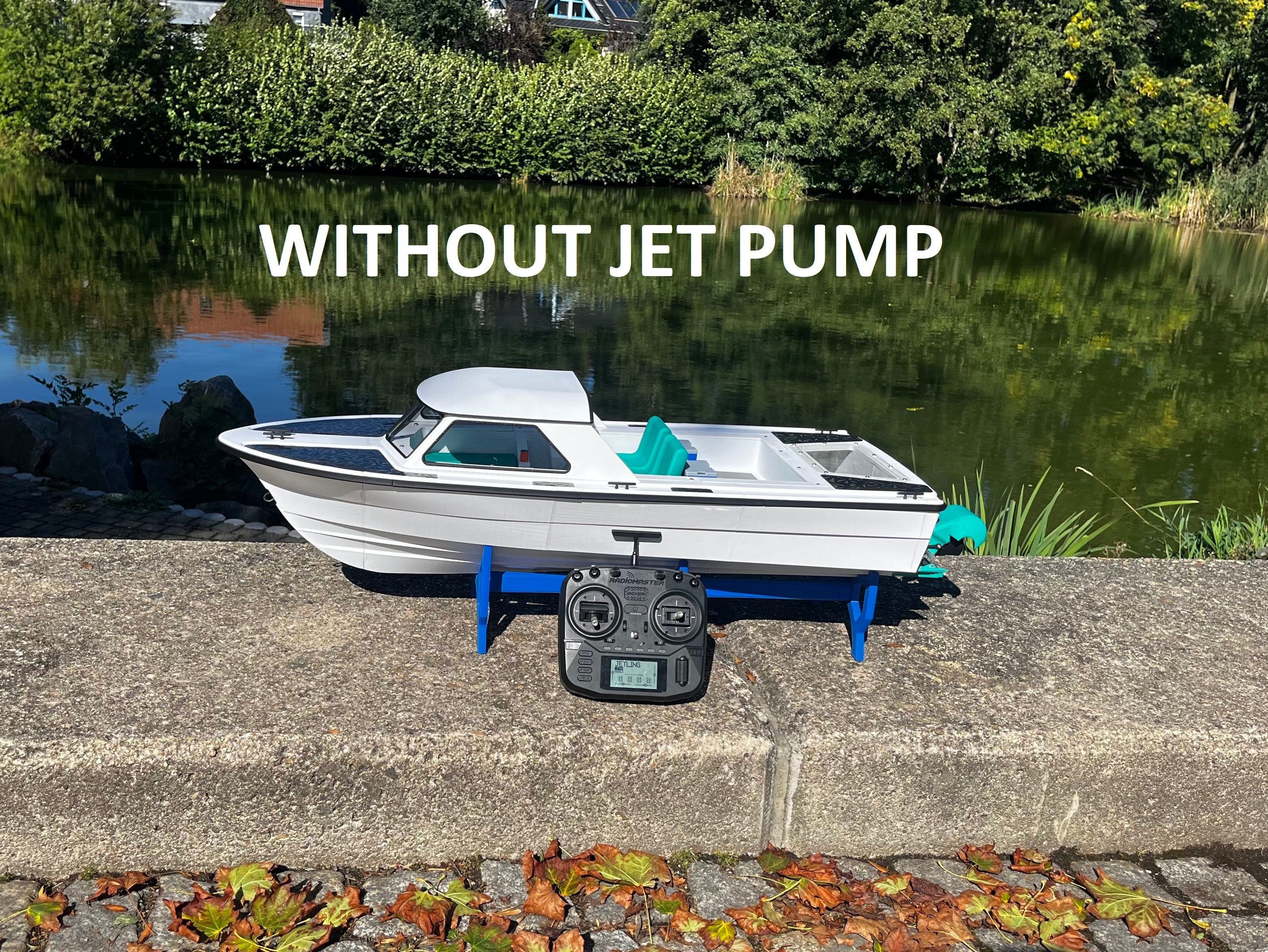

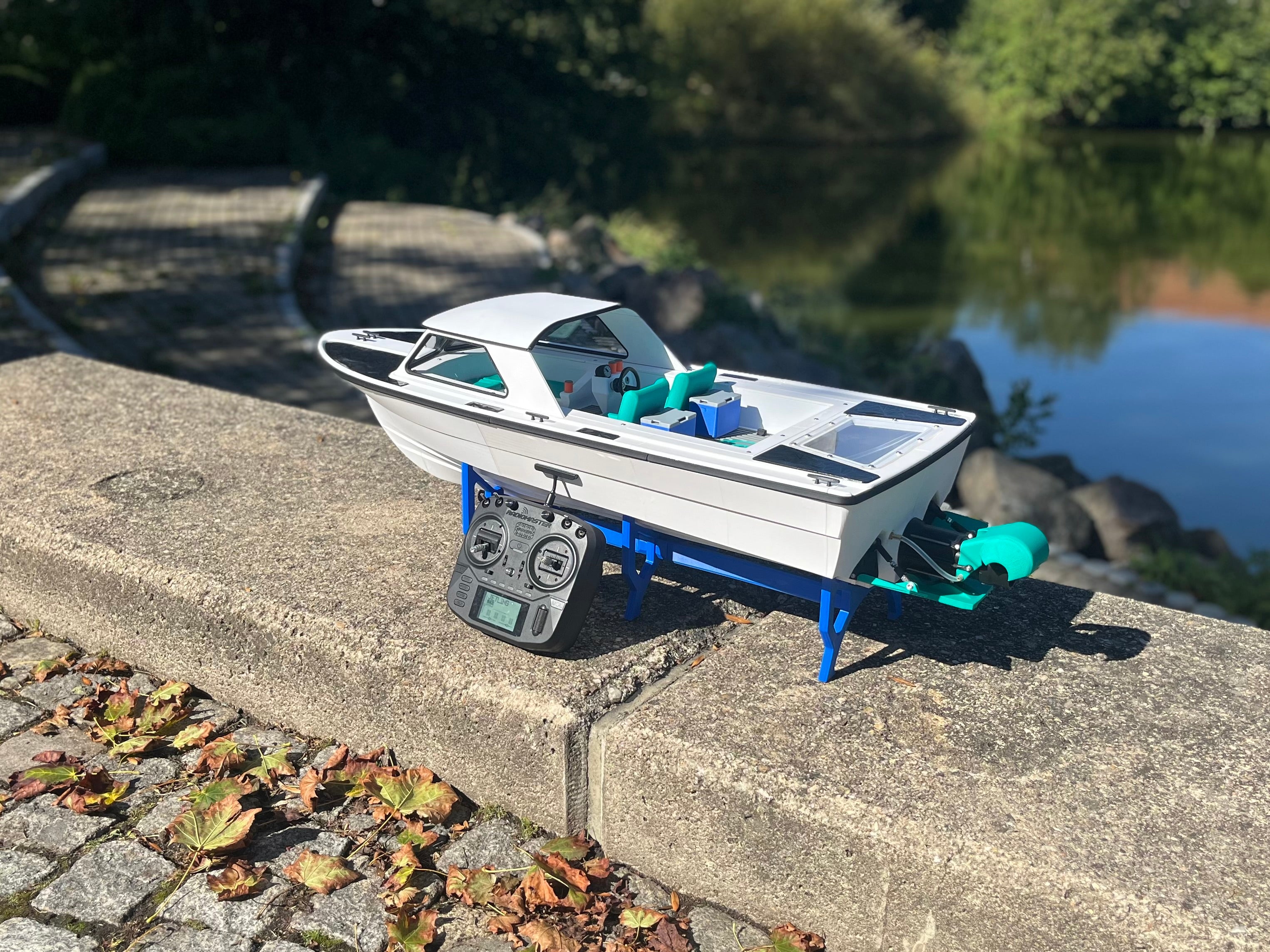

Here is our 1/6 Scale JETLING! The Jet pump powered sibling of our popular FJORDLING.

The model is supposed to bepowered by a 40 mm HPW40 jet drive with an attached 2.2 kW brushless motor on 3-6S LiPos.
You can also install your M-Jet 30 or M-Jet 35. There are separate print files for these pumps also as part of the files package.

The print data includes all the necessary data for printing the hull, deck, roof and add-on parts. In this set the HPW40 Jet Pump is also NOT included. Also the M-Jet pump need to be purchased separately!

2 BOAT VERSION IN ONE - you have the choice!!!

RACE - deck version

ECO - deck version

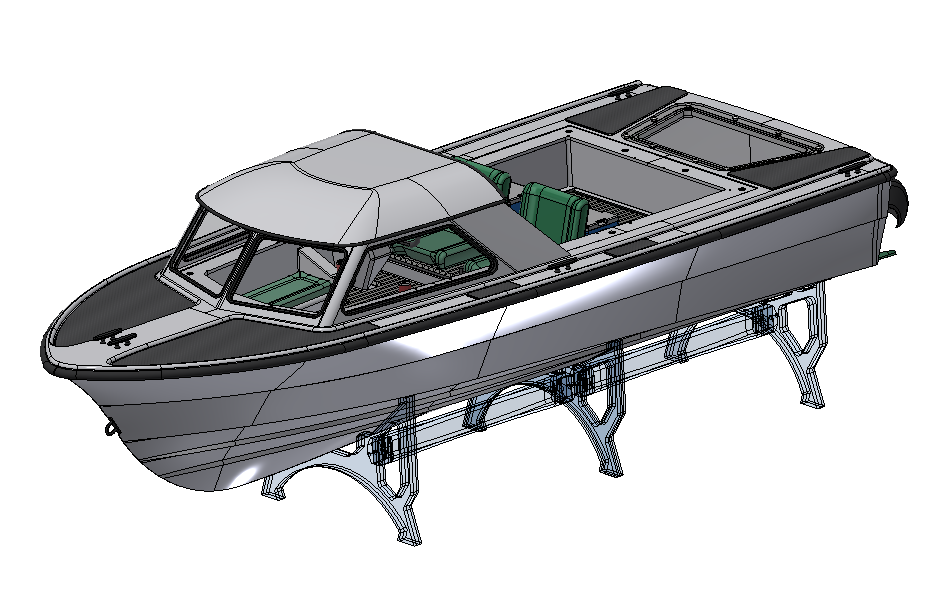

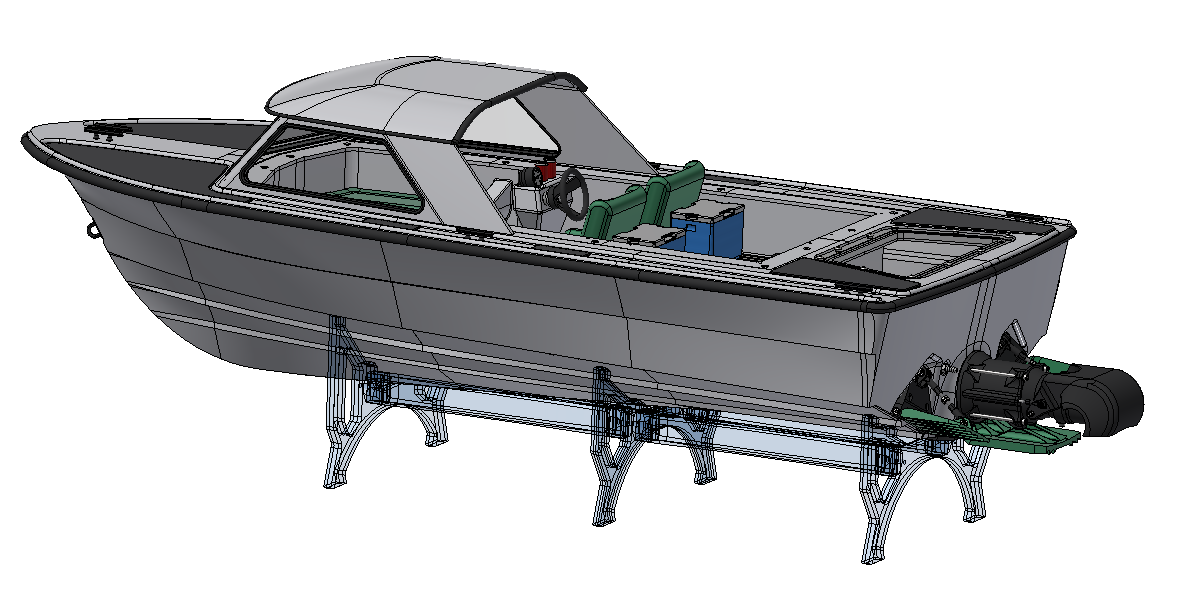

The data package (STL, STEP, 3mf) consists of approx. 165 different print parts (plus the ones from the outboard), with a total of over 250 components to be printed. The resulting level of detail is outstanding.

It therefore places high demands on the builder both in terms of assembly and driving.

In addition to the print data (STL/Step + 3mf), the data package contains detailed, illustrated assembly instructions (67 pages) as well as illustrated printing instructions (22 pages). A complete parts list is also included as an Excel document. This contains a list of all required print parts, as well as a detailed description of the required add-on parts (incl. recommended motor, ESC, servo, etc.).

All documents are listed here

The model can be printed in PLA tough, PETG or ABS/ASA. The double-walled hull gives the boat great stability.

For demanding trips, we strongly recommend printing in ABS/ASA. We have had the best experiences with eSUN ASA+ and ABS+.

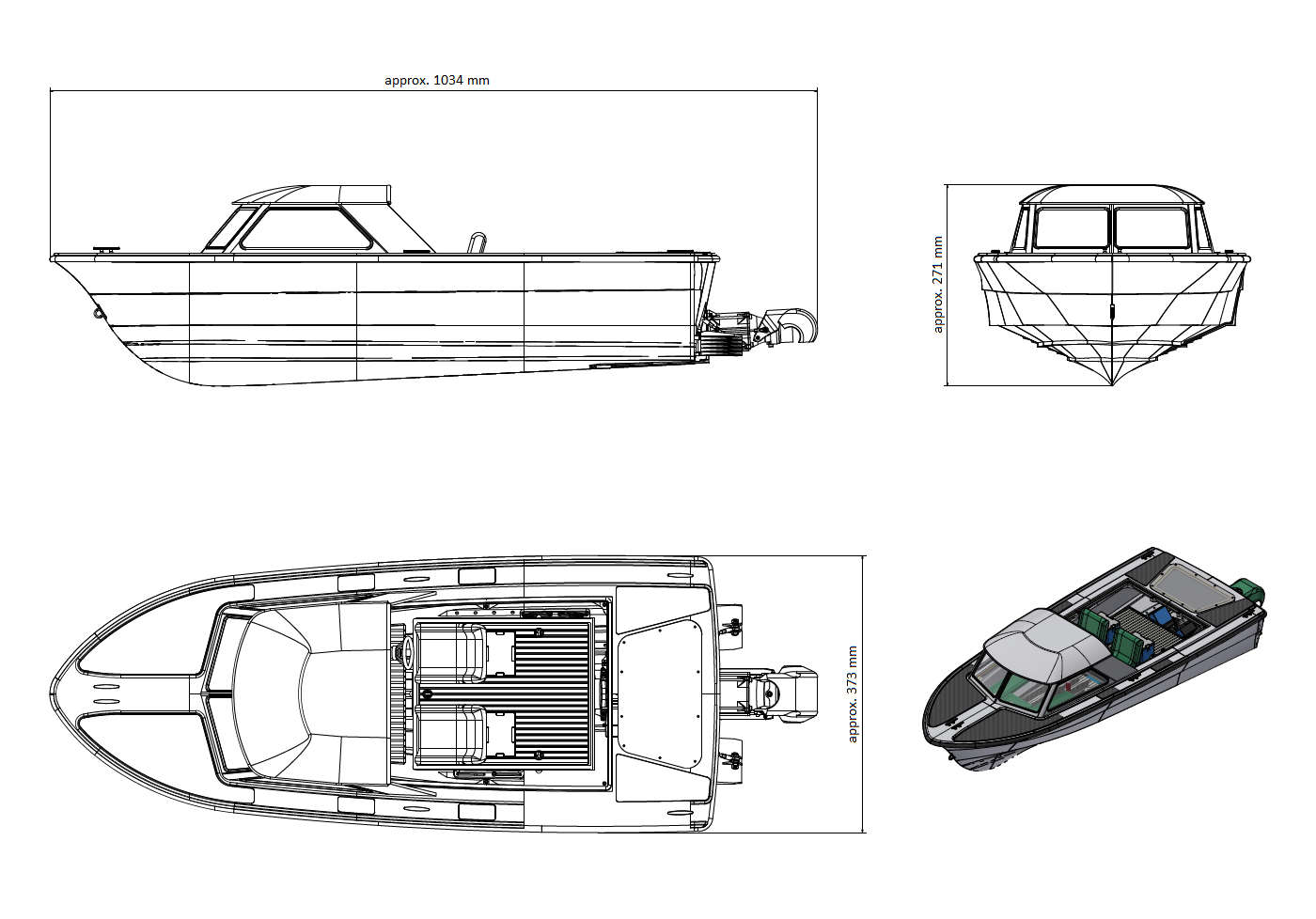

Width: 373 mm

Height: 271 mm

Weight (printed parts): approx. 3,400 g

Weight (complete): approx. 4.900 g

The model is aimed at experienced 3D printing users and model makers!!!

The following components are additionally required and are not part of the offer:

Remote control and receiver

various small parts
